19370061440

Active

HARTING Technology Group

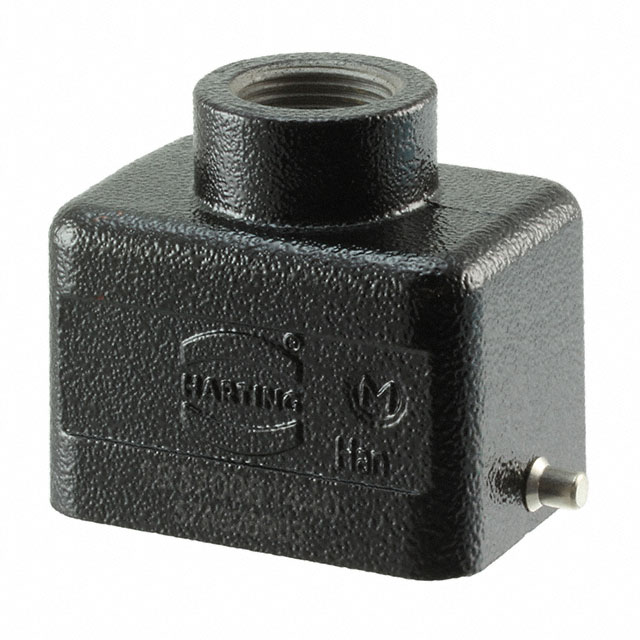

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; HAN® M; M20

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; HAN® M; M20

Technical Specifications

Parameters and characteristics for this part

Specification	19370061440

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.575 in
Size / Dimension [z]	40 mm
Style	Top Entry
Thread Size	M20

Part	Lock Location	Connector Type	Ingress Protection	Housing Material	Thread Size	Style	Housing Color	Housing Finish	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 19370061440	Locking Clip (1) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	M20	Top Entry	Black	Powder Coated	60 mm	1.575 in	40 mm	43 mm	1.693 in	2.362 in	6B	125 °C	-40 °C
HARTING Technology Group 19370061250			IP65 - Dust Tight Water Resistant	Aluminum Die Cast			Black	Powder Coated							6B	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M20 6B IP65 - Dust Tight, Water Resistant
