19370061250

Active

HARTING Technology Group

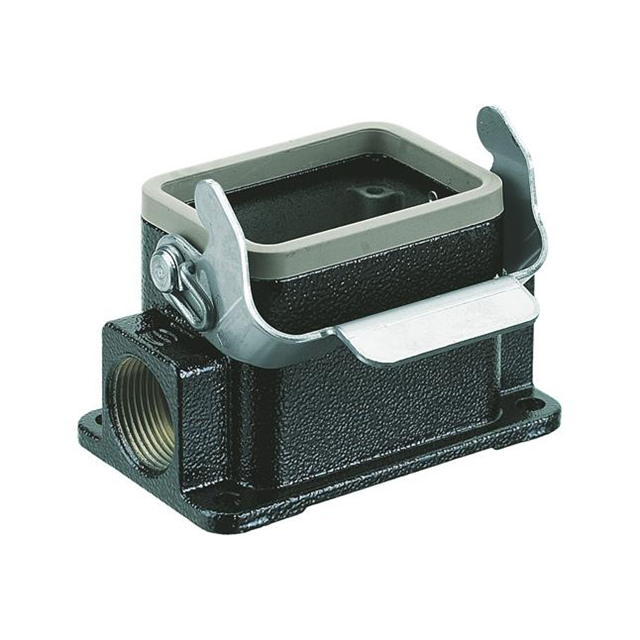

6B MARINE SURFACE MOUNT HOUSING, SINGLE LEVER, LOW CONSTRUCTION, 1XM20

Search across all available documentation for this part.

Active

HARTING Technology Group

6B MARINE SURFACE MOUNT HOUSING, SINGLE LEVER, LOW CONSTRUCTION, 1XM20

Technical Specifications

Parameters and characteristics for this part

Specification	19370061250

Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B

Part	Lock Location	Connector Type	Ingress Protection	Housing Material	Thread Size	Style	Housing Color	Housing Finish	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 19370061440	Locking Clip (1) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	M20	Top Entry	Black	Powder Coated	60 mm	1.575 in	40 mm	43 mm	1.693 in	2.362 in	6B	125 °C	-40 °C
HARTING Technology Group 19370061250			IP65 - Dust Tight Water Resistant	Aluminum Die Cast			Black	Powder Coated							6B	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector 6B IP65 - Dust Tight, Water Resistant
