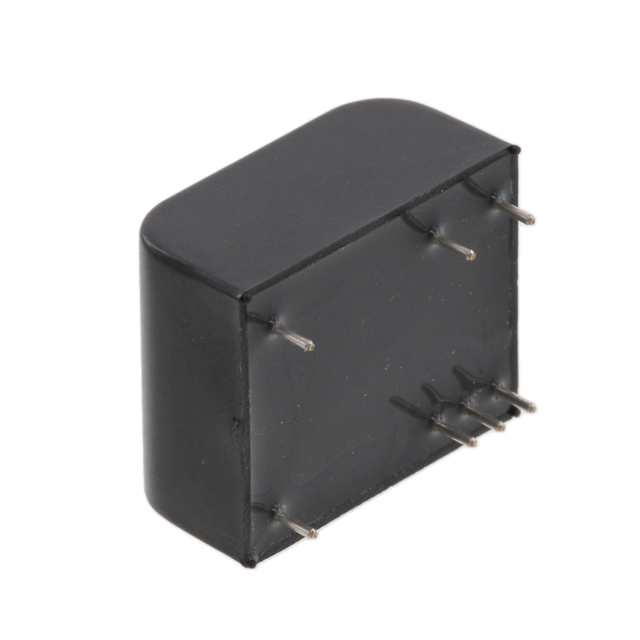

BPH1-08-00

Active

Cita Technologies, LLC.

DIP,27.9X23.2MM ISOLATED POWER MODULES ROHS

Search across all available documentation for this part.

Active

Cita Technologies, LLC.

DIP,27.9X23.2MM ISOLATED POWER MODULES ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Approval Agency	Current - Output (Max)	Applications	Efficiency	Voltage - Output 1	Number of Outputs	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Cita Technologies, LLC. BPH1-08-50	Enclosed	100 VAC	375 VAC	Through Hole	CB cURus	83 mA 125 mA	ITE (Commercial)	70 %	8 V	2	1.3 W	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 °C	-30 ░C	7-DIP Module
Cita Technologies, LLC. BPH1-08-33	Enclosed	100 VAC	375 VAC	Through Hole	CB cURus	53 mA 125 mA	ITE (Commercial)	70 %	8 V	2	837 mW	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 °C	-30 ░C	7-DIP Module
Cita Technologies, LLC. BPH1-08-00	Enclosed	100 VAC	375 VAC	Through Hole	CB cURus		ITE (Commercial)	70 %	8 V	1		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 °C	-30 ░C	7-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 8V 100 ~ 375 VAC Input
