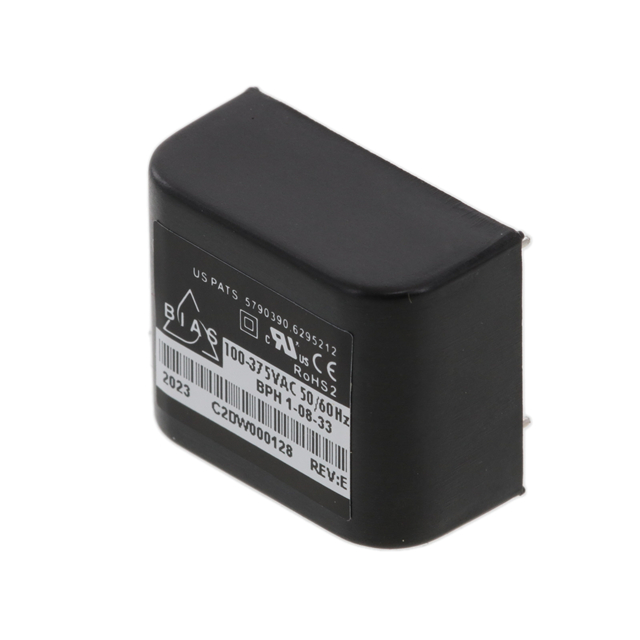

BPH1-08-33

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 3.3V 837MW

Search across all available documentation for this part.

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 3.3V 837MW

Technical Specifications

Parameters and characteristics for this part

Part	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Approval Agency	Current - Output (Max)	Applications	Efficiency	Voltage - Output 1	Number of Outputs	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Cita Technologies, LLC. BPH1-08-50	Enclosed	100 VAC	375 VAC	Through Hole	CB cURus	83 mA 125 mA	ITE (Commercial)	70 %	8 V	2	1.3 W	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 °C	-30 ░C	7-DIP Module
Cita Technologies, LLC. BPH1-08-33	Enclosed	100 VAC	375 VAC	Through Hole	CB cURus	53 mA 125 mA	ITE (Commercial)	70 %	8 V	2	837 mW	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 °C	-30 ░C	7-DIP Module
Cita Technologies, LLC. BPH1-08-00	Enclosed	100 VAC	375 VAC	Through Hole	CB cURus		ITE (Commercial)	70 %	8 V	1		0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	70 °C	-30 ░C	7-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.78

General part information

Enclosed AC DC Converters 2 Output 8V 53mA, 125mA 100 ~ 375 VAC Input

Technical documentation and resources
