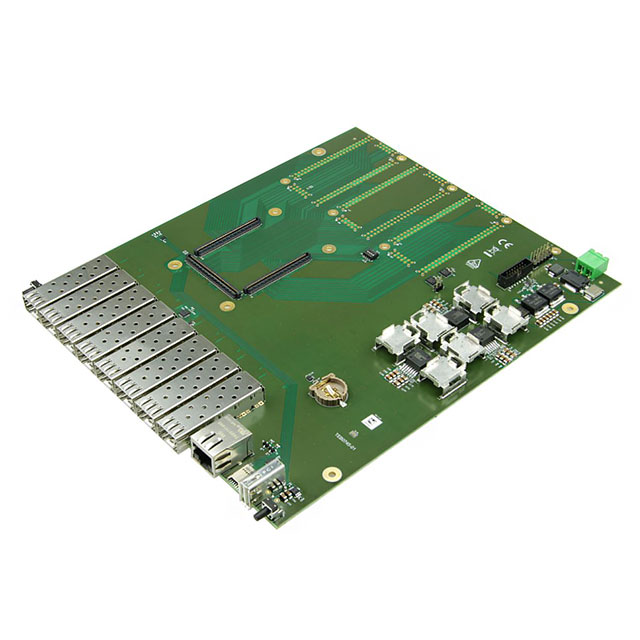

TEB0745-02

Trenz Electronic

SOM CARRIER BOARD ZYNQ TE0745

Search across all available documentation for this part.

Trenz Electronic

SOM CARRIER BOARD ZYNQ TE0745

Technical Specifications

Parameters and characteristics for this part

Specification	TEB0745-02

Contents	Board(s)
For Use With/Related Products	TE0745
Platform	TE0745 Zynq-7000 AP SoC Carrier
Suggested Programming Environment	Vivado
Utilized IC / Part	TE0745

Part	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Module/Board Type	Connector Type	Flash Size	Core Processor	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	For Use With/Related Products	Contents	Platform	Utilized IC / Part	Suggested Programming Environment	Co-Processor	Co-Processor
Trenz Electronic TE0745-02-91C11-A	70 °C	0 °C	1 GB	MPU Core	Samtec ST5	64 MB	Xilinx Zynq XC7Z045-1FBG676C	2.99 in	76 mm	52 mm	2.05 "
Trenz Electronic TE0745-02-72I11-A	85 °C	-40 °C	1 GB	MPU Core	Samtec ST5	64 MB	Xilinx Zynq XC7Z030-2FBG676I	2.99 in	76 mm	52 mm	2.05 "
Trenz Electronic TE0745-02-92I11-A
Trenz Electronic TEB0745-02												TE0745	Board(s)	TE0745 Zynq-7000 AP SoC Carrier	TE0745	Vivado
Trenz Electronic TE0745-02-71I11-A	85 °C	-40 °C	1 GB	FPGA MCU	Samtec ST5	64 MB	ARM® Cortex®-A9	2.99 in	76 mm	52 mm	2.05 "						Z-7030	Zynq-7000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 302.00

General part information

TE0745 Zynq-7000 AP SoC Carrier TE0745 Zynq®-7000 FPGA Evaluation Board

Technical documentation and resources

No documents available
