EZ-1200-NFC-2
ActiveAmphenol Times Microwave Systems

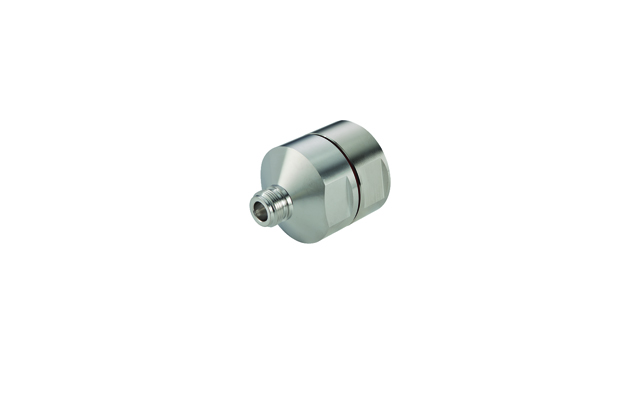

N-FEMALE (JACK) CLAMP CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
EZ-1200-NFC-2
ActiveAmphenol Times Microwave Systems
N-FEMALE (JACK) CLAMP CONNECTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EZ-1200-NFC-2 |
|---|---|
| Body Finish | White Bronze |
| Cable Group | LMR-1200 |
| Connector Style | N Type |
| Connector Type | Female Socket, Jack |
| Contact Termination | Push On |
| Frequency - Max [Max] | 2.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Clamp |
EZ-1200 Series
| Part | Cable Group | Mounting Type | Center Contact Plating | Ingress Protection | Body Finish | Connector Style | Impedance | Contact Termination | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Mounting Feature | Housing Color | Connector Type | Dielectric Material | Insertion Loss | Mating Cycles | Number of Ports | Shield Termination | Frequency - Max [Max] | Fastening Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems | LMR-1200 | Panel Mount Right Angle | Silver | IP67 - Dust Tight Waterproof | White Bronze | 7/8 EIA | 50 Ohms | Push On | Brass | 85 °C | -40 °C | Brass | Flange | Silver | Male Pin Plug | Polytetrafluoroethylene (PTFE) | 0.05 dB | 500 | 1 | Clamp | 500 MHz | Push-Pull | |
Amphenol Times Microwave Systems | LMR-1200 | Silver | IP67 - Dust Tight Waterproof | White Bronze | 7/8 EIA | 50 Ohms | Push On | Brass | 155 °C | -55 °C | Brass | Flange | Silver | Male Pin Plug | Polytetrafluoroethylene (PTFE) | 0.05 dB | 1 | Clamp | 500 MHz | Push-Pull | |||
Amphenol Times Microwave Systems | LMR-1200 | Free Hanging (In-Line) | Silver | Silver | N Type | 50 Ohms | Press-Fit | Brass | Brass | Silver | Male Pin Plug | Polytetrafluoroethylene (PTFE) | 1 | Clamp | 3 GHz | 1000 VDC | |||||||
Amphenol Times Microwave Systems | LMR-1200 | Free Hanging (In-Line) | White Bronze | N Type | 50 Ohms | Push On | 85 °C | -40 °C | Silver | Female Socket Jack | 1 | Clamp | 2.5 GHz | ||||||||||
Amphenol Times Microwave Systems | LMR-1200 | Free Hanging (In-Line) | Silver | White Bronze | N Type | 50 Ohms | Press-Fit | Brass | 85 °C | -55 °C | Phosphor Bronze | Silver | Male Pin Plug | Polytetrafluoroethylene (PTFE) | 500 | 1 | Clamp | 6000 MHz | 5000 V | ||||
Amphenol Times Microwave Systems | LMR-1200 | Free Hanging (In-Line) | White Bronze | N Type | 50 Ohms | Push On | 85 °C | -40 °C | Silver | Male Pin Plug | 1 | Clamp | 2.5 GHz | ||||||||||
Amphenol Times Microwave Systems | LMR-1200 | Free Hanging (In-Line) | Silver | Silver | N Type | 50 Ohms | Press-Fit | Brass | 75 ░C | -5 °C | Brass | Silver | Male Pin Plug | Polytetrafluoroethylene (PTFE) | 1 | Clamp | 3 GHz | 1000 VDC | |||||
Amphenol Times Microwave Systems | LMR-1200 | Free Hanging (In-Line) | Gold | IP67 - Dust Tight Waterproof | White Bronze | 7/16 DIN | 50 Ohms | Push On | Brass | 155 °C | -55 °C | Beryllium Copper | Silver | Female Socket Jack | Polytetrafluoroethylene (PTFE) | 0.05 dB | 1 | Clamp | 3 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 3 | $ 121.62 | |
Description
General part information
EZ-1200 Series
N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Push On
Documents
Technical documentation and resources
No documents available
