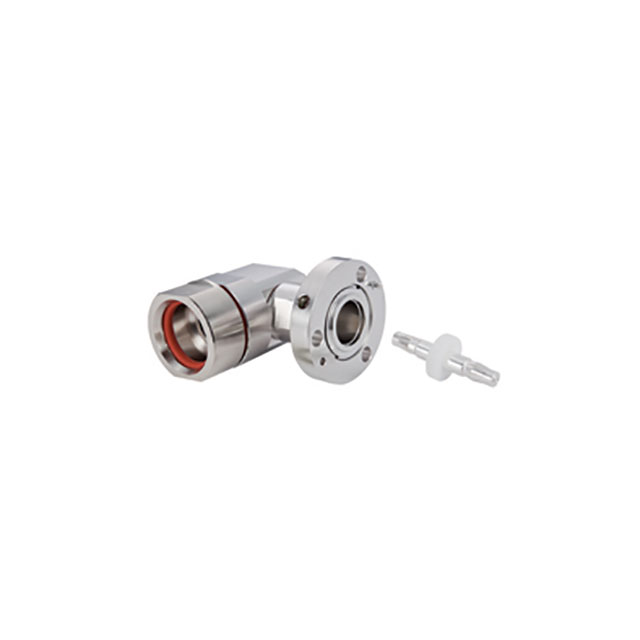

EZ-1200-78EIA-RA-2

Active

Amphenol Times Microwave Systems

7/8 EIA FLANGE CLAMP RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-1200-78EIA-RA-2

Active

Amphenol Times Microwave Systems

7/8 EIA FLANGE CLAMP RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-1200-78EIA-RA-2

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-1200
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	7/8 EIA
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Clamp

EZ-1200 Series

Part	Cable Group	Mounting Type	Center Contact Plating	Ingress Protection	Body Finish	Connector Style	Impedance	Contact Termination	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Mounting Feature	Housing Color	Connector Type	Dielectric Material	Insertion Loss	Mating Cycles	Number of Ports	Shield Termination	Frequency - Max [Max]	Fastening Type	Voltage Rating
Amphenol Times Microwave Systems EZ-1200-78EIA-RA-2	LMR-1200	Panel Mount Right Angle	Silver	IP67 - Dust Tight Waterproof	White Bronze	7/8 EIA	50 Ohms	Push On	Brass	85 °C	-40 °C	Brass	Flange	Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)	0.05 dB	500	1	Clamp	500 MHz	Push-Pull
Amphenol Times Microwave Systems EZ-1200-78EIA-2	LMR-1200		Silver	IP67 - Dust Tight Waterproof	White Bronze	7/8 EIA	50 Ohms	Push On	Brass	155 °C	-55 °C	Brass	Flange	Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)	0.05 dB		1	Clamp	500 MHz	Push-Pull
Amphenol Times Microwave Systems EZ-1200-NFC-PL-2	LMR-1200	Free Hanging (In-Line)	Silver		Silver	N Type	50 Ohms	Press-Fit	Brass			Brass		Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)			1	Clamp	3 GHz		1000 VDC
Amphenol Times Microwave Systems EZ-1200-NFC-2	LMR-1200	Free Hanging (In-Line)			White Bronze	N Type	50 Ohms	Push On		85 °C	-40 °C			Silver	Female Socket Jack				1	Clamp	2.5 GHz
Amphenol Times Microwave Systems EZ-1200-NMC-PL-2	LMR-1200	Free Hanging (In-Line)	Silver		White Bronze	N Type	50 Ohms	Press-Fit	Brass	85 °C	-55 °C	Phosphor Bronze		Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)		500	1	Clamp	6000 MHz		5000 V
Amphenol Times Microwave Systems EZ-1200-NMC-2	LMR-1200	Free Hanging (In-Line)			White Bronze	N Type	50 Ohms	Push On		85 °C	-40 °C			Silver	Male Pin Plug				1	Clamp	2.5 GHz
Amphenol Times Microwave Systems EZ-1200-NFC-PL	LMR-1200	Free Hanging (In-Line)	Silver		Silver	N Type	50 Ohms	Press-Fit	Brass	75 ░C	-5 °C	Brass		Silver	Male Pin Plug	Polytetrafluoroethylene (PTFE)			1	Clamp	3 GHz		1000 VDC
Amphenol Times Microwave Systems EZ-1200-716FC-2	LMR-1200	Free Hanging (In-Line)	Gold	IP67 - Dust Tight Waterproof	White Bronze	7/16 DIN	50 Ohms	Push On	Brass	155 °C	-55 °C	Beryllium Copper		Silver	Female Socket Jack	Polytetrafluoroethylene (PTFE)	0.05 dB		1	Clamp	3 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 344.94

Description

General part information

EZ-1200 Series

7/8 EIA Connector Plug, Male Pin 50 Ohms Panel Mount, Right Angle Push On
