VOF-50B-12

Active

CUI Inc.

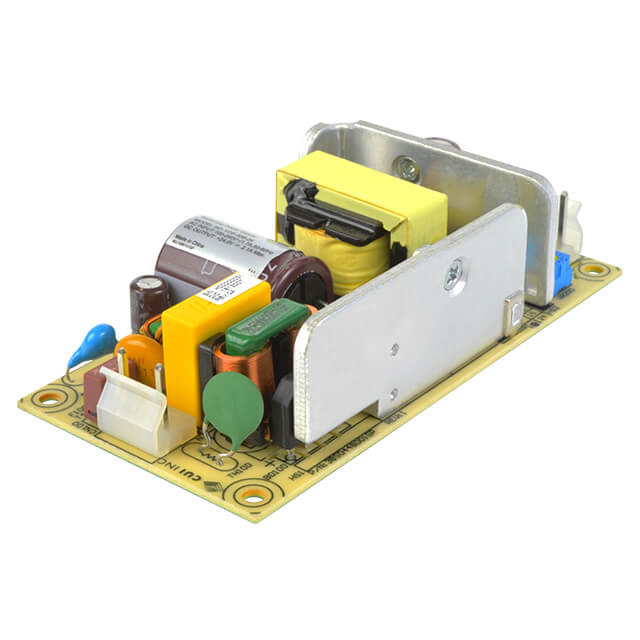

AC/DC POWER SUPPLY SINGLE-OUT 12V 4.2A 50.4W 6-PIN BOX

Deep-Dive with AI

Search across all available documentation for this part.

VOF-50B-12

Active

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 12V 4.2A 50.4W 6-PIN BOX

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-50B-12

Applications	ITE (Commercial)
Approval Agency	UL, SIQ, CB Scheme, TUV, FCC, EN, IEC, CE
Current - Output 1	4.2 A
Efficiency	87 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	50 W
Standard Number	61000-3-3, 55032 Class B, 61000-3-2, 62368-1, 55024
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

VOF-50 Series

Part	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Features	Type	Applications	Voltage - Isolation	Voltage - Output 1	Efficiency	Standard Number	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type
CUI Inc. VOF-50-24	50 W	277 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	ITE (Commercial)	3000 V	24 V	89 %	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	CB Scheme EN FCC IEC SIQ TUV UL	60 °C	-20 °C	1	2.1 A	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Chassis Mount
CUI Inc. VOF-50-12	50 W	277 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	ITE (Commercial)	3000 V	12 V	87 %	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	CB Scheme EN FCC IEC SIQ TUV UL	60 °C	-20 °C	1	4.2 A	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Chassis Mount
CUI Inc. VOF-50-15	50 W	277 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	ITE (Commercial)	3000 V	15 V	88 %	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	CB Scheme EN FCC IEC SIQ TUV UL	60 °C	-20 °C	1	3.4 A	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Chassis Mount
CUI Inc. VOF-50-5	33 W	277 VAC	90 VAC	Adjustable Output Universal Input	Open Frame	ITE (Commercial)	3000 V	5 V		55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	CB Scheme EN FCC IEC SIQ TUV UL	60 °C	-20 °C	1	6.67 A	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	Chassis Mount
CUI Inc. VOF-50B-24	50 W	264 VAC	90 VAC	Universal Input	Open Frame	ITE (Commercial)	3000 V	24 V	89 %	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	CB Scheme CE EN FCC IEC SIQ TUV UL	70 °C	-20 °C	1	2.1 A							Chassis Mount
CUI Inc. VOF-50B-12	50 W	264 VAC	90 VAC	Universal Input	Open Frame	ITE (Commercial)	3000 V	12 V	87 %	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	CB Scheme CE EN FCC IEC SIQ TUV UL	70 °C	-20 °C	1	4.2 A							Chassis Mount
CUI Inc. VOF-50B-15	51 W	264 VAC	90 VAC	Universal Input	Open Frame	ITE (Commercial)	3000 V	15 V	88 %	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	CB Scheme CE EN FCC IEC SIQ TUV UL	70 °C	-20 °C	1	3.4 A							Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.98
		5	$ 43.62
		10	$ 42.25
		25	$ 40.89
		56	$ 39.53
		112	$ 38.16

Description

General part information

VOF-50 Series

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
