7038-0252

Active

Amphenol SV Microwave

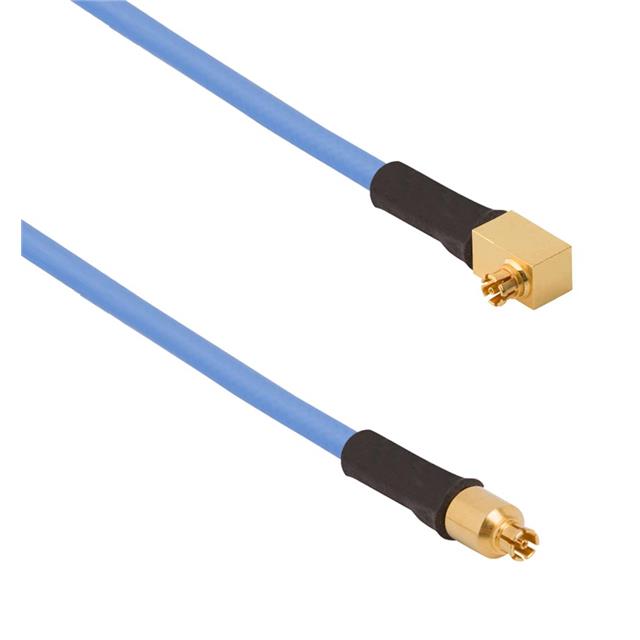

RF / COAXIAL CABLE ASSEMBLY, SMPS JACK TO 90° SMPS JACK, 0.047" SEMI RIGID, 50 OHM, 12 ", 305 MM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF / COAXIAL CABLE ASSEMBLY, SMPS JACK TO 90° SMPS JACK, 0.047" SEMI RIGID, 50 OHM, 12 ", 305 MM

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Frequency - Max [Max]	1st Connector Mounting Type	1st Contact Gender	1st Connector	Overall Impedance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Style	Cable Type	Color	2nd Contact Gender	2nd Connector	2nd Connector Mounting Type	Shielding	Connector Type
Amphenol SV Microwave 7038-0253	152.4 mm	6 in	65 GHz	Free Hanging (In-Line)	Female	SMPS Jack	50 Ohms	Shielded	-65 ░C	165 °C	SMPS to SMPS	0.047" Flexible Cable	Blue	Female	SMPS Jack	Free Hanging (In-Line)
Amphenol SV Microwave 7038-0251	152.4 mm	6 in	40 GHz	Free Hanging (In-Line)	Female	SMPS Jack	50 Ohms	Shielded	-65 ░C	165 °C	SMPS to SMPS	0.047" Flexible Cable	Blue	Female	SMPS Jack Right Angle	Free Hanging (In-Line)
Amphenol SV Microwave 7038-0250	304.8 mm	12 "	40 GHz	Free Hanging (In-Line)	Female	Right Angle SMPS Jack	50 Ohms	Shielded	-65 ░C	165 °C	SMPS to SMPS	0.047" Flexible Cable	Blue	Female	SMPS Jack Right Angle	Free Hanging (In-Line)
Amphenol SV Microwave 7038-0211	152.4 mm	0.5 ft										0.047" Flexible Cable	Blue				Unshielded	Mini D RF 8 pos Female to SMPS Male (8)
Amphenol SV Microwave 7038-0252	304.8 mm	12 "	40 GHz	Free Hanging (In-Line)	Female	SMPS Jack	50 Ohms	Shielded	-65 ░C	165 °C	SMPS to SMPS	0.047" Flexible Cable	Blue	Female	SMPS Jack Right Angle	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMPS to SMPS 0.047" Flexible Cable 12.00" (304.80mm)

Technical documentation and resources

No documents available
