7038-0253
ActiveAmphenol SV Microwave

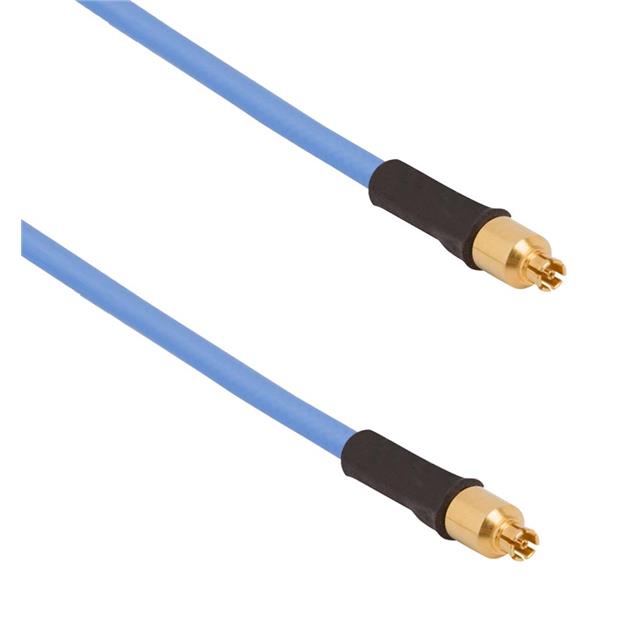

CBL ASSY SMPS JACK TO JACK 6"
Deep-Dive with AI
Search across all available documentation for this part.
7038-0253
ActiveAmphenol SV Microwave
CBL ASSY SMPS JACK TO JACK 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7038-0253 |
|---|---|
| 1st Connector | SMPS Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMPS Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 0.047" Flexible Cable |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 65 GHz |
| Length | 152.4 mm |
| Length | 6 in |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style | SMPS to SMPS |
7038 Series
| Part | Length | Length | Frequency - Max [Max] | 1st Connector Mounting Type | 1st Contact Gender | 1st Connector | Overall Impedance | Features | Operating Temperature [Min] | Operating Temperature [Max] | Style | Cable Type | Color | 2nd Contact Gender | 2nd Connector | 2nd Connector Mounting Type | Shielding | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol SV Microwave | 152.4 mm | 6 in | 65 GHz | Free Hanging (In-Line) | Female | SMPS Jack | 50 Ohms | Shielded | -65 ░C | 165 °C | SMPS to SMPS | 0.047" Flexible Cable | Blue | Female | SMPS Jack | Free Hanging (In-Line) | ||
Amphenol SV Microwave | 152.4 mm | 6 in | 40 GHz | Free Hanging (In-Line) | Female | SMPS Jack | 50 Ohms | Shielded | -65 ░C | 165 °C | SMPS to SMPS | 0.047" Flexible Cable | Blue | Female | SMPS Jack Right Angle | Free Hanging (In-Line) | ||
Amphenol SV Microwave | 304.8 mm | 12 " | 40 GHz | Free Hanging (In-Line) | Female | Right Angle SMPS Jack | 50 Ohms | Shielded | -65 ░C | 165 °C | SMPS to SMPS | 0.047" Flexible Cable | Blue | Female | SMPS Jack Right Angle | Free Hanging (In-Line) | ||
Amphenol SV Microwave | 152.4 mm | 0.5 ft | 0.047" Flexible Cable | Blue | Unshielded | Mini D RF 8 pos Female to SMPS Male (8) | ||||||||||||
Amphenol SV Microwave | 304.8 mm | 12 " | 40 GHz | Free Hanging (In-Line) | Female | SMPS Jack | 50 Ohms | Shielded | -65 ░C | 165 °C | SMPS to SMPS | 0.047" Flexible Cable | Blue | Female | SMPS Jack Right Angle | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 353.52 | |
| 10 | $ 277.94 | |||
| 25 | $ 254.13 | |||
Description
General part information
7038 Series
Cable Assembly Coaxial SMPS to SMPS 0.047" Flexible Cable 6.000" (152.40mm)
