WIZ750SR-EVB

Active

WIZnet

EVALUATION BOARD

Search across all available documentation for this part.

Active

WIZnet

EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Part	Function	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Package / Case	Protocol	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplied Contents	Utilized IC / Part	Type
WIZnet WIZ750SR-100	Bridge RS232 to TCP/IP	Module	85 °C	-40 °C	10/100 Base-T/TX PHY	Module	Ethernet	UART	2.7 V	3.6 V
WIZnet WIZ750SR-EVB	Serial to Ethernet										Board(s)	WIZ750SR	Interface
WIZnet WIZ750SR-TTL		Module	70 °C	0 °C	10/100 Base-T/TX PHY	Module	Ethernet	TTL	2.7 V	3.6 V
WIZnet WIZ750SR-105		Module	70 °C	0 °C	10/100 Base-T/TX PHY	Module	Ethernet	TTL	2.7 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.00

General part information

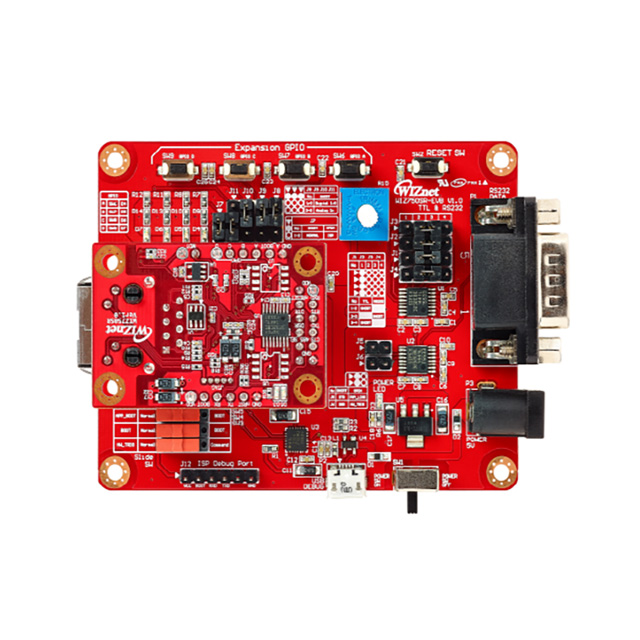

WIZ750SR Serial to Ethernet Interface Evaluation Board

Technical documentation and resources

No documents available
