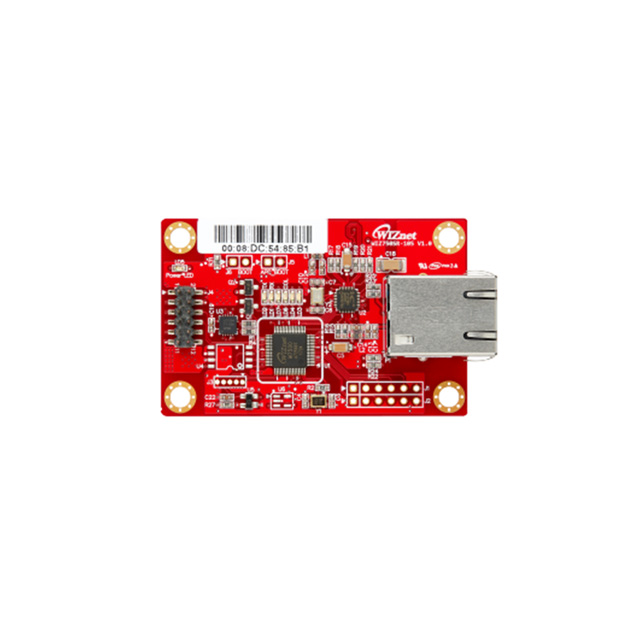

WIZ750SR-105

Active

WIZnet

ETHERNT 10/100 BASE-T/TX PHY MOD

Search across all available documentation for this part.

Active

WIZnet

ETHERNT 10/100 BASE-T/TX PHY MOD

Technical Specifications

Parameters and characteristics for this part

Part	Function	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Package / Case	Protocol	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplied Contents	Utilized IC / Part	Type
WIZnet WIZ750SR-100	Bridge RS232 to TCP/IP	Module	85 °C	-40 °C	10/100 Base-T/TX PHY	Module	Ethernet	UART	2.7 V	3.6 V
WIZnet WIZ750SR-EVB	Serial to Ethernet										Board(s)	WIZ750SR	Interface
WIZnet WIZ750SR-TTL		Module	70 °C	0 °C	10/100 Base-T/TX PHY	Module	Ethernet	TTL	2.7 V	3.6 V
WIZnet WIZ750SR-105		Module	70 °C	0 °C	10/100 Base-T/TX PHY	Module	Ethernet	TTL	2.7 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ethernet 10/100 Base-T/TX PHY TTL Interface Module

Technical documentation and resources

No documents available
