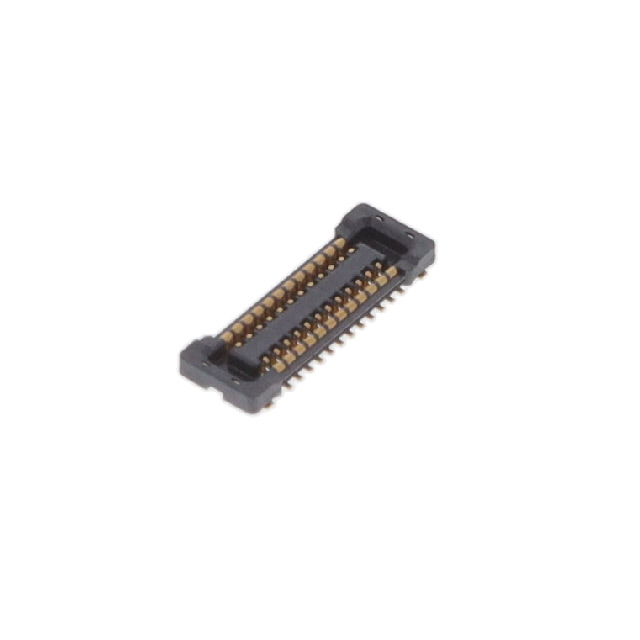

KN13C0.7-24DS-0.4V(800)

Active

Hirose Electric USA, Inc.

CONN 0.4MM SMD RCPT 24POS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN 0.4MM SMD RCPT 24POS

Technical Specifications

Parameters and characteristics for this part

Specification	KN13C0.7-24DS-0.4V(800)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Features	Pick and Place, Solder Retention
Height Above Board [z]	0.71 mm
Height Above Board [z]	0.028 in
Mated Stacking Heights	0.7 mm
Mounting Type	Surface Mount
Number of Positions	24
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Connector Type	Contact Finish	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Rows	Height Above Board	Height Above Board	Number of Positions
Hirose Electric USA, Inc. KN13C0.7-16DS-0.4V(800)	16	0.016 in	0.4 mm	0.71 mm	0.028 in	Center Strip Contacts Receptacle	Gold	Pick and Place Solder Retention	Surface Mount	1.97 Áin	0.05 Ám	0.7 mm	2
Hirose Electric USA, Inc. KN13C0.7-30DP-0.4V(800)		0.016 in	0.4 mm			Header Outer Shroud Contacts	Gold	Pick and Place Solder Retention	Surface Mount	1.97 Áin	0.05 Ám	0.7 mm	2	0.57 mm	0.022 in	30
Hirose Electric USA, Inc. KN13C0.7-24DS-0.4V(800)		0.016 in	0.4 mm	0.71 mm	0.028 in	Center Strip Contacts Receptacle	Gold	Pick and Place Solder Retention	Surface Mount	1.97 Áin	0.05 Ám	0.7 mm	2			24
Hirose Electric USA, Inc. KN13C0.7-24DP-0.4V(895)		0.016 in	0.4 mm			Header Outer Shroud Contacts	Gold	Pick and Place Solder Retention	Surface Mount	1.97 Áin	0.05 Ám	0.7 mm	2	0.57 mm	0.022 in	24
Hirose Electric USA, Inc. KN13C0.7-16DP-0.4V(800)	16	0.016 in	0.4 mm			Header Outer Shroud Contacts	Gold	Pick and Place Solder Retention	Surface Mount	1.97 Áin	0.05 Ám	0.7 mm	2	0.57 mm	0.022 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
