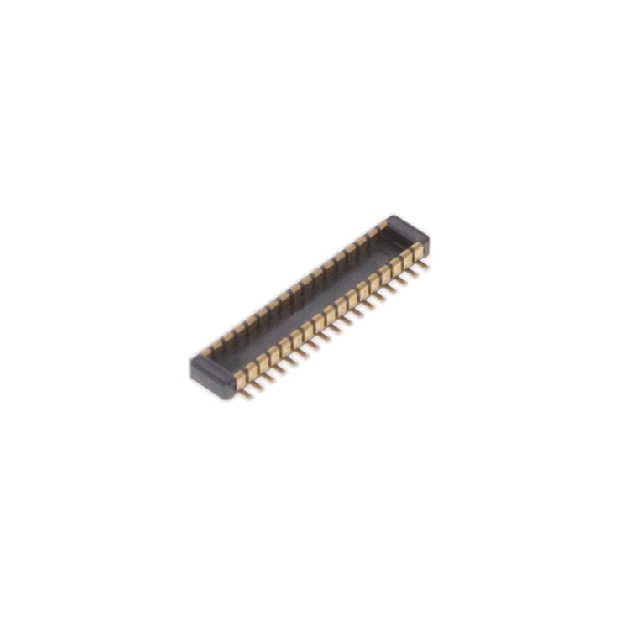

KN13C0.7-30DP-0.4V(800)
ActiveHirose Electric USA, Inc.
0.4MM PITCH, 0.7MM STACKING HEIGHT, FPC-TO-BOARD CONNECTORS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KN13C0.7-30DP-0.4V(800)
ActiveHirose Electric USA, Inc.
0.4MM PITCH, 0.7MM STACKING HEIGHT, FPC-TO-BOARD CONNECTORS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KN13C0.7-30DP-0.4V(800) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Features | Pick and Place, Solder Retention |
| Height Above Board | 0.57 mm |
| Height Above Board | 0.022 in |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.29 | |
| 10 | $ 1.09 | |||
| 25 | $ 1.04 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.71 | |||
| 2500 | $ 0.64 | |||
| Digi-Reel® | 1 | $ 1.29 | ||
| 10 | $ 1.09 | |||
| 25 | $ 1.04 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.98 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.71 | |||
| 2500 | $ 0.64 | |||
| Tape & Reel (TR) | 8000 | $ 0.55 | ||
| Newark | Each (Supplied on Full Reel) | 1 | $ 1.02 | |
| 40000 | $ 0.88 | |||
Description
General part information
KN13C0.7 Series
30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
