EDAC Inc.

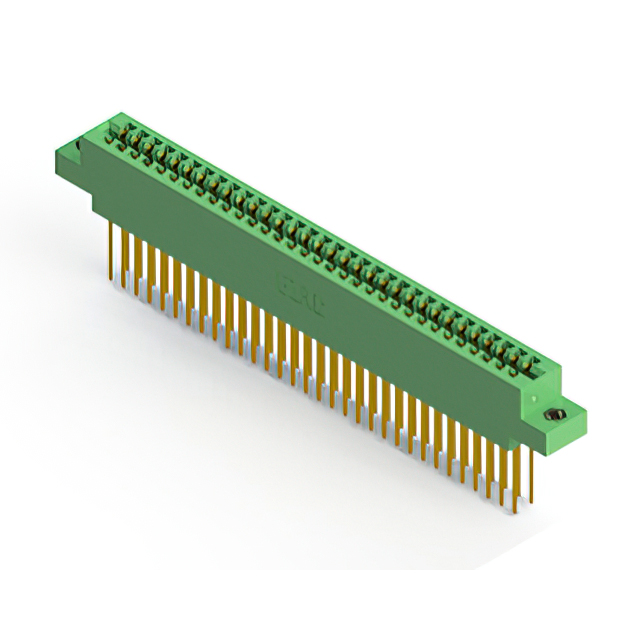

CARD EDGE CONNECTOR, 64 CONTACT(S), 2 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, #4-40, GREEN INSULATOR,

Search across all available documentation for this part.

Active

EDAC Inc.

CARD EDGE CONNECTOR, 64 CONTACT(S), 2 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, #4-40, GREEN INSULATOR,

Technical Specifications

Parameters and characteristics for this part

Specification	317-064-542-808

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Wire Wrap

Part	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Read Out	Pitch [x]	Pitch [x]	Color	Termination	Card Type	Number of Rows	Mounting Type	Gender	Flange Feature	Material - Insulation	Number of Positions/Bay/Row [custom]	Contact Type	Number of Positions	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 317-064-542-808	Copper Alloy	10 Áin	0.25 Ám	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	0.156 in	3.96 mm	Green	Wire Wrap	Non Specified - Dual Edge	2	Through Hole	Female	4-40 Threaded Insert Top Mount Opening	Diallyl Phthalate (DAP)	32	Cantilever	64
EDAC Inc. 317-064-542-878	Copper Alloy	10 Áin	0.25 Ám	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	0.156 in	3.96 mm	Green	Wire Wrap	Non Specified - Dual Edge	2	Through Hole	Female	4-40 Threaded Insert Top Mount Opening	Diallyl Phthalate (DAP)	32	Cantilever	64	Card Guides
EDAC Inc. 317-064-542-801	Copper Alloy	10 Áin	0.25 Ám	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	0.156 in	3.96 mm	Green	Wire Wrap	Non Specified - Dual Edge	2	Through Hole	Female		Diallyl Phthalate (DAP)	32	Cantilever	64
EDAC Inc. 317-064-540-803	Copper Alloy	10 Áin	0.25 Ám	125 °C	-65 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Dual	0.156 in	3.96 mm	Green	Wire Wrap	Non Specified - Dual Edge	2	Through Hole	Female	Floating Bobbin Flush Mount	Diallyl Phthalate (DAP)	32	Cantilever	64		0.116 in	2.95 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 82.69

General part information

64 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
