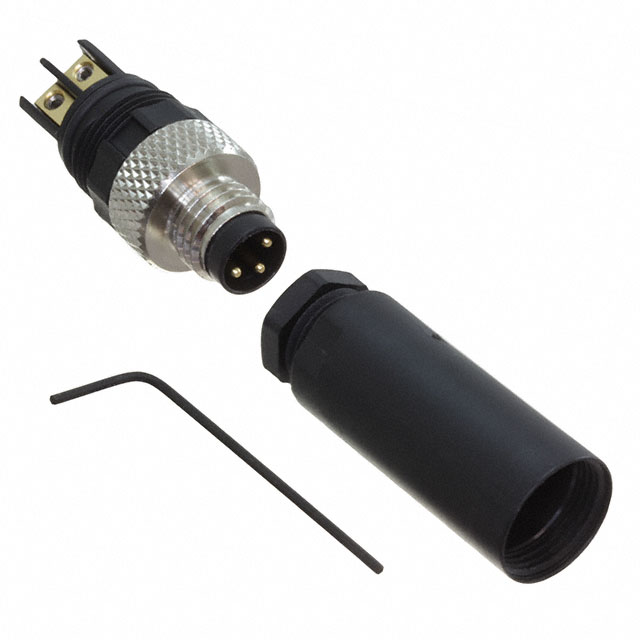

V3S-GM - V3S-GM

V3S-GM

Active
PEPPERL+FUCHS

SENSOR CONNECTOR, M8, PLUG, 3 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN
V3S-GM - V3S-GM

V3S-GM

Active
PEPPERL+FUCHS

SENSOR CONNECTOR, M8, PLUG, 3 CONTACTS, SCREW PIN, STRAIGHT CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN

Technical Specifications

Parameters and characteristics for this part

SpecificationV3S-GM
ApplicationsIndustrial Automation
Backshell Material, PlatingPolybutylene Terephthalate (PBT)
Cable Opening [Max] [diameter]5 mm
Cable Opening [Max] [diameter]0.197 in
Cable Opening [Min] [diameter]3.5 mm
Cable Opening [Min] [diameter]0.138 in
ColorBlack, Silver
Connector TypePlug, Male Pins
Contact Finish - MatingGold
Contact MaterialCopper Zinc
Current Rating (Amps)4 A
FeaturesBackshell
Ingress ProtectionIP67 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Primary MaterialMetal
Shell FinishNickel
Shell MaterialCopper Zinc
Shell Size - InsertM8-3
ShieldingUnshielded
TerminationScrew
Voltage Rating60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 25.79
10$ 22.58
25$ 21.60
50$ 20.91
100$ 20.21
250$ 19.10
500$ 18.54
NewarkEach 1$ 31.88
5$ 28.43
10$ 27.47
25$ 25.95
50$ 24.15
100$ 21.39
250$ 19.19

Description

General part information

V3S-G Series

3 Position Circular Connector Plug, Male Pins Screw
