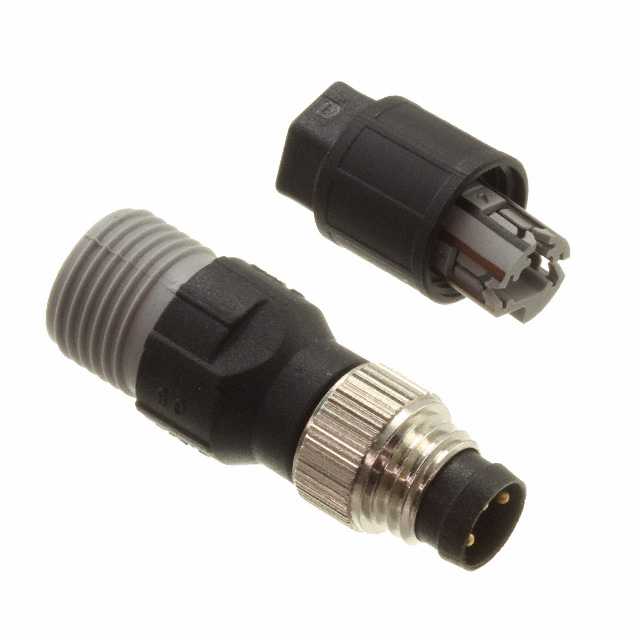

V3S-GM-Q4

Active

PEPPERL+FUCHS

CONN PLUG MALE 3POS GOLD IDC

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

CONN PLUG MALE 3POS GOLD IDC

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Mounting Type	Color	Connector Type	Primary Material	Shell Size - Insert	Shell Material	Voltage Rating	Ingress Protection	Applications	Contact Finish - Mating	Termination	Current Rating (Amps)	Features	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shell Finish	Backshell Material, Plating	Material Flammability Rating
PEPPERL+FUCHS V3S-GM-Q4	Unshielded	Free Hanging (In-Line)	Black Silver	Male Pins Plug	Metal	M8-3	Brass	60 VAC	IP65 IP67	Industrial Automation	Gold	IDC	4 A	Backshell	Copper Tin	-25 °C	80 C	2.5 mm	5 mm	0.098 in	0.197 in	Nickel	Nylon 6 Polyamide (PA6)
PEPPERL+FUCHS V3S-GM	Unshielded	Free Hanging (In-Line)	Black Silver	Male Pins Plug	Metal	M8-3	Copper Zinc	60 VDC	IP67 - Dust Tight Waterproof	Industrial Automation	Gold	Screw	4 A	Backshell	Copper Zinc	-40 °C	85 °C	3.5 mm	5 mm	0.138 in	0.197 in	Nickel	Polybutylene Terephthalate (PBT)	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins IDC

Technical documentation and resources

No documents available
