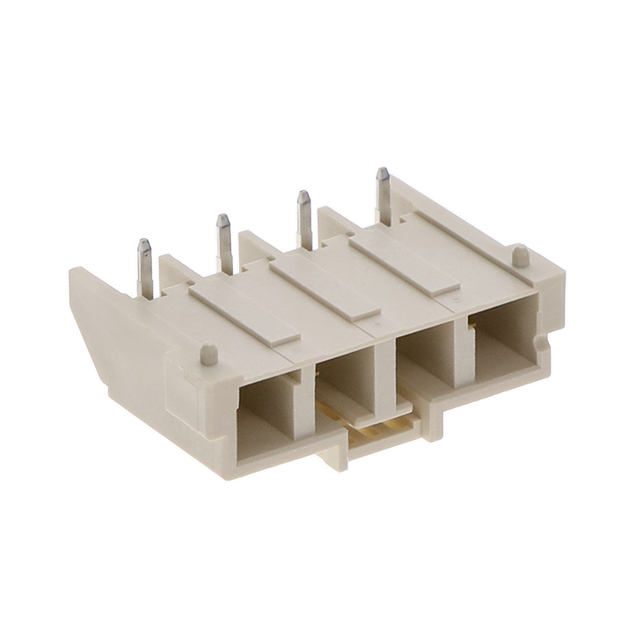

DF22-4P-7.92DS(53)

Active

Hirose Electric USA, Inc.

[ENERBEE ] 7.92MM CONTACT PITCH HIGH-CURRENT CONNECTORS FOR INTERNAL POWER SUPPLIES (UL, C-UL AND T V LISTED)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF22-4P-7.92DS(53)

Active

Hirose Electric USA, Inc.

[ENERBEE ] 7.92MM CONTACT PITCH HIGH-CURRENT CONNECTORS FOR INTERNAL POWER SUPPLIES (UL, C-UL AND T V LISTED)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF22-4P-7.92DS(53)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Mating	0.354 in
Contact Length - Mating	9 mm
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	22 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Beige
Insulation Height	12.2 mm
Insulation Height	0.48 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.312 in
Pitch - Mating	7.92 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	1000 VDC

DF22 Series

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Termination	Style	Fastening Type	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Mating	Shrouding	Insulation Material	Number of Rows	Material Flammability Rating	Mounting Type	Features	Contact Type	Current Rating (Amps)	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Termination	Color	Pitch [x]	Pitch [x]	Note	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights
Hirose Electric USA, Inc. DF22-2P-7.92DS	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	2	12.2 mm	0.48 in	Tin-Lead	Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole Right Angle	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm
Hirose Electric USA, Inc. DF22-2P-7.92DS(36)	Header	-35 °C	85 °C	Copper Alloy		Solder	Board to Cable/Wire	Latch Holder	2	12.2 mm	0.48 in		Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole Right Angle	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm
Hirose Electric USA, Inc. DF22-3P-7.92DS(75)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder		12.2 mm	0.48 in		Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole Right Angle	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm	Tin
Hirose Electric USA, Inc. DF22-5S-7.92C	Receptacle							Latch Lock							1		Free Hanging (In-Line)	Polarizing Key	Female Socket												Crimp	White	7.92 mm	0.312 in	Contacts Not Included
Hirose Electric USA, Inc. DF22-2P-7.92DSA(05)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	2	18.1 mm	0.713 "	Tin-Copper	Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm							1 µm	39.4 µin	25.7 mm 28.7 mm
Hirose Electric USA, Inc. DF22-2S-7.92C	Receptacle							Latch Lock	2						1		Free Hanging (In-Line)	Polarizing Key	Female Socket												Crimp	White	7.92 mm	0.312 in	Contacts Not Included
Hirose Electric USA, Inc. DF22-3P-7.92DSA(35)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder		18.1 mm	0.713 "		Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm	Tin								25.7 mm 28.7 mm
Hirose Electric USA, Inc. DF22-4P-7.92DS(53)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	4	12.2 mm	0.48 in	Gold	Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole Right Angle	Board Guide	Male Pin	22 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm	Gold
Hirose Electric USA, Inc. DF22-1P-7.92DSA(25)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	1	18.1 mm	0.713 "		Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole		Male Pin	30 A	1000 VDC			0.354 in	9 mm	Square	All	0.146 in	3.7 mm	Tin								25.7 mm 28.7 mm
Hirose Electric USA, Inc. DF22-1P-7.92DSA(05)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	1	18.1 mm	0.713 "	Tin-Copper	Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole		Male Pin	30 A	1000 VDC			0.354 in	9 mm	Square	All	0.146 in	3.7 mm							1 µm	39.4 µin	25.7 mm 28.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.41
		10	$ 1.20
		100	$ 1.02
		500	$ 0.91
		1000	$ 0.86
		5000	$ 0.77
		10000	$ 0.74
Newark	Each	1	$ 1.26
		2500	$ 1.10

Description

General part information

DF22 Series

Connector Header Through Hole, Right Angle 4 position 0.312" (7.92mm)
