DF22-2S-7.92C

Obsolete

Hirose Electric USA, Inc.

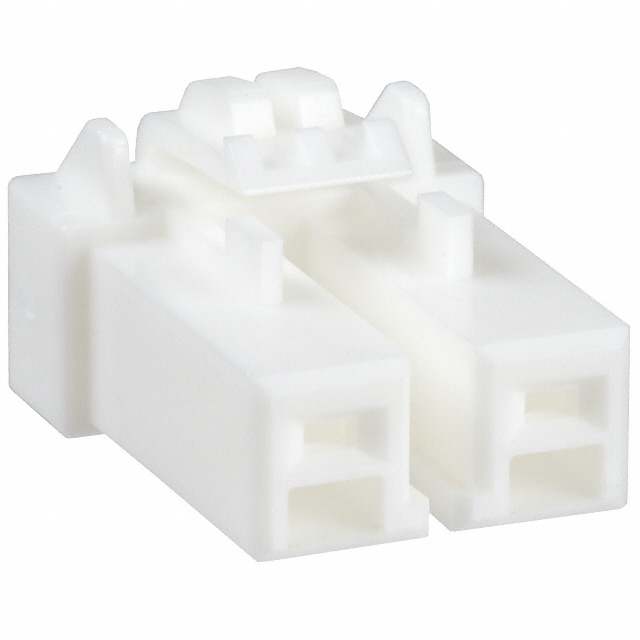

CONN RCPT HSG 2POS 7.92MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF22-2S-7.92C

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSG 2POS 7.92MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF22-2S-7.92C

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Polarizing Key
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Pitch [x]	7.92 mm
Pitch [x]	0.312 in

DF22 Series

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Color	Termination	Style	Fastening Type	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Mating	Shrouding	Insulation Material	Number of Rows	Material Flammability Rating	Mounting Type	Features	Contact Type	Current Rating (Amps)	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Termination	Color	Pitch [x]	Pitch [x]	Note	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights
Hirose Electric USA, Inc. DF22-2P-7.92DS	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	2	12.2 mm	0.48 in	Tin-Lead	Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole Right Angle	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm
Hirose Electric USA, Inc. DF22-2P-7.92DS(36)	Header	-35 °C	85 °C	Copper Alloy		Solder	Board to Cable/Wire	Latch Holder	2	12.2 mm	0.48 in		Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole Right Angle	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm
Hirose Electric USA, Inc. DF22-3P-7.92DS(75)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder		12.2 mm	0.48 in		Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole Right Angle	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm	Tin
Hirose Electric USA, Inc. DF22-5S-7.92C	Receptacle							Latch Lock							1		Free Hanging (In-Line)	Polarizing Key	Female Socket												Crimp	White	7.92 mm	0.312 in	Contacts Not Included
Hirose Electric USA, Inc. DF22-2P-7.92DSA(05)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	2	18.1 mm	0.713 "	Tin-Copper	Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm							1 µm	39.4 µin	25.7 mm 28.7 mm
Hirose Electric USA, Inc. DF22-2S-7.92C	Receptacle							Latch Lock	2						1		Free Hanging (In-Line)	Polarizing Key	Female Socket												Crimp	White	7.92 mm	0.312 in	Contacts Not Included
Hirose Electric USA, Inc. DF22-3P-7.92DSA(35)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder		18.1 mm	0.713 "		Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole	Board Guide	Male Pin	25 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm	Tin								25.7 mm 28.7 mm
Hirose Electric USA, Inc. DF22-4P-7.92DS(53)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	4	12.2 mm	0.48 in	Gold	Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole Right Angle	Board Guide	Male Pin	22 A	1000 VDC	0.312 in	7.92 mm	0.354 in	9 mm	Square	All	0.146 in	3.7 mm	Gold
Hirose Electric USA, Inc. DF22-1P-7.92DSA(25)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	1	18.1 mm	0.713 "		Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole		Male Pin	30 A	1000 VDC			0.354 in	9 mm	Square	All	0.146 in	3.7 mm	Tin								25.7 mm 28.7 mm
Hirose Electric USA, Inc. DF22-1P-7.92DSA(05)	Header	-35 °C	85 °C	Copper Alloy	Beige	Solder	Board to Cable/Wire	Latch Holder	1	18.1 mm	0.713 "	Tin-Copper	Shrouded - 4 Wall	Nylon Polyamide (PA)	1	UL94 V-0	Through Hole		Male Pin	30 A	1000 VDC			0.354 in	9 mm	Square	All	0.146 in	3.7 mm							1 µm	39.4 µin	25.7 mm 28.7 mm
