ESJLW

Active

Taiwan Semiconductor Corporation

35NS, 0.8A, 600V, SUPER FAST RECOVERY RECTIFIER

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

35NS, 0.8A, 600V, SUPER FAST RECOVERY RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	ESJLW

Capacitance @ Vr, F	19 pF
Current - Average Rectified (Io)	800 mA
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123W
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123W
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Supplier Device Package	Capacitance @ Vr, F	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Qualification	Current - Reverse Leakage @ Vr	Speed	Package / Case	Reverse Recovery Time (trr)	Mounting Type	Grade	Technology
Taiwan Semiconductor Corporation ESJLWHRVG	SOD-123W	19 pF	800 mA	1.7 V	150 °C	-55 °C	600 V	AEC-Q101	1 µA	200 mA 500 ns	SOD-123W	35 ns	Surface Mount	Automotive	Standard
Taiwan Semiconductor Corporation ESJLW	SOD-123W	19 pF	800 mA	1.7 V	150 °C	-55 °C	600 V		1 µA	200 mA 500 ns	SOD-123W	35 ns	Surface Mount		Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

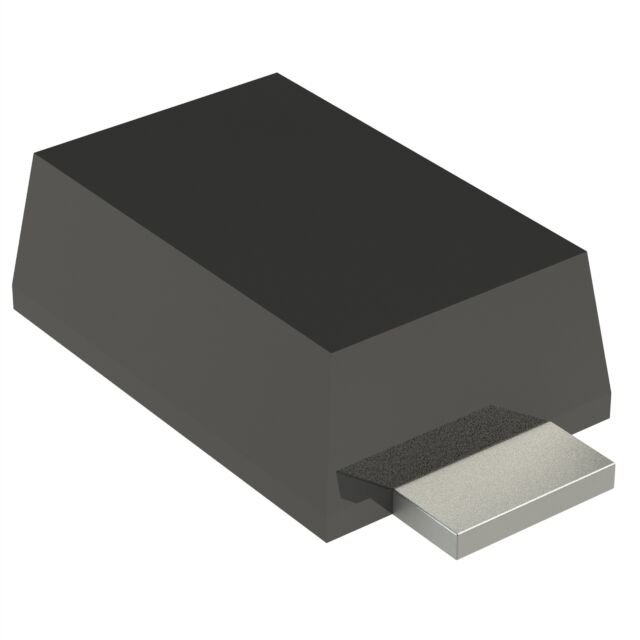

Diode 600 V 800mA Surface Mount SOD-123W
