ESJLWHRVG

Unknown

Taiwan Semiconductor Corporation

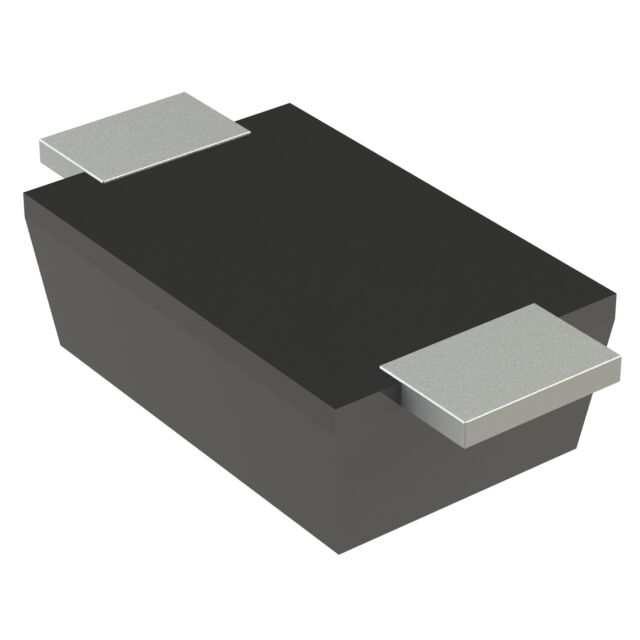

DIODE STD 600V 800MA SOD123W

Search across all available documentation for this part.

Unknown

Taiwan Semiconductor Corporation

DIODE STD 600V 800MA SOD123W

Technical Specifications

Parameters and characteristics for this part

Specification	ESJLWHRVG

Capacitance @ Vr, F	19 pF
Current - Average Rectified (Io)	800 mA
Current - Reverse Leakage @ Vr	1 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123W
Qualification	AEC-Q101
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123W
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Supplier Device Package	Capacitance @ Vr, F	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Qualification	Current - Reverse Leakage @ Vr	Speed	Package / Case	Reverse Recovery Time (trr)	Mounting Type	Grade	Technology
Taiwan Semiconductor Corporation ESJLWHRVG	SOD-123W	19 pF	800 mA	1.7 V	150 °C	-55 °C	600 V	AEC-Q101	1 µA	200 mA 500 ns	SOD-123W	35 ns	Surface Mount	Automotive	Standard
Taiwan Semiconductor Corporation ESJLW	SOD-123W	19 pF	800 mA	1.7 V	150 °C	-55 °C	600 V		1 µA	200 mA 500 ns	SOD-123W	35 ns	Surface Mount		Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 600 V 800mA Surface Mount SOD-123W
