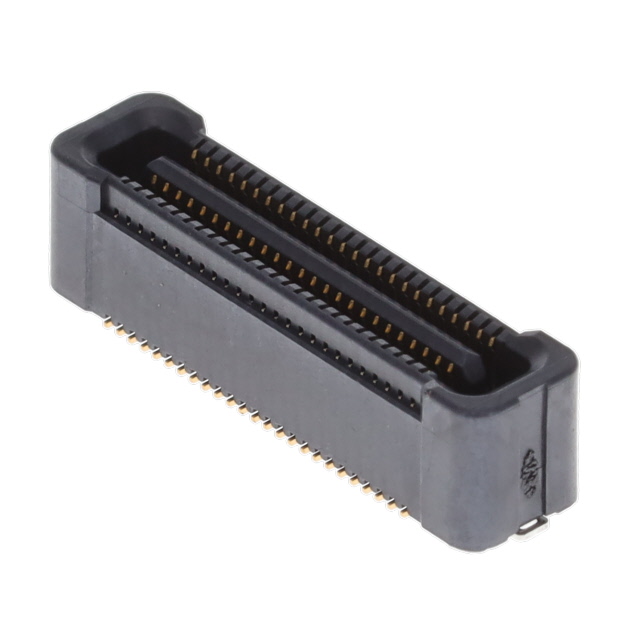

245655050600829+T

Active

Kyocera AVX

RECEPT 0.5MM - 6MM - VERT -FLOAT

Search across all available documentation for this part.

Active

Kyocera AVX

RECEPT 0.5MM - 6MM - VERT -FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	245655050600829+T

Connector Type	Floating, Receptacle
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	4.75 mm
Height Above Board [z]	0.187 in
Mated Stacking Heights	6 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Features	Contact Finish	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Number of Rows	Connector Type	Height Above Board [z]	Height Above Board	Height Above Board
Kyocera AVX 245655030600829+T	Board Guide Solder Retention	Gold	6 mm	0.5 mm	0.02 in	30	Surface Mount	2	Floating Receptacle	0.187 in	4.75 mm
Kyocera AVX 245655030700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	30	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in
Kyocera AVX 245655080700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	80	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in
Kyocera AVX 245655100700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	100	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in
Kyocera AVX 245655050400829+T	Board Guide Solder Retention	Gold	4 mm	0.5 mm	0.02 in	50	Surface Mount	2	Floating Receptacle		2.75 mm	0.108 in
Kyocera AVX 245655040600829+T	Board Guide Solder Retention	Gold	6 mm	0.5 mm	0.02 in	40	Surface Mount	2	Floating Receptacle	0.187 in	4.75 mm
Kyocera AVX 245655040700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	40	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in
Kyocera AVX 245655060400829+T	Solder Retention		4 mm	0.5 mm	0.02 in	60	Surface Mount	2	Floating Receptacle		2.75 mm	0.108 in
Kyocera AVX 245655050600829+T	Board Guide Solder Retention	Gold	6 mm	0.5 mm	0.02 in	50	Surface Mount	2	Floating Receptacle	0.187 in	4.75 mm
Kyocera AVX 245655050700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	50	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Connector Receptacle, Floating Surface Mount Gold
