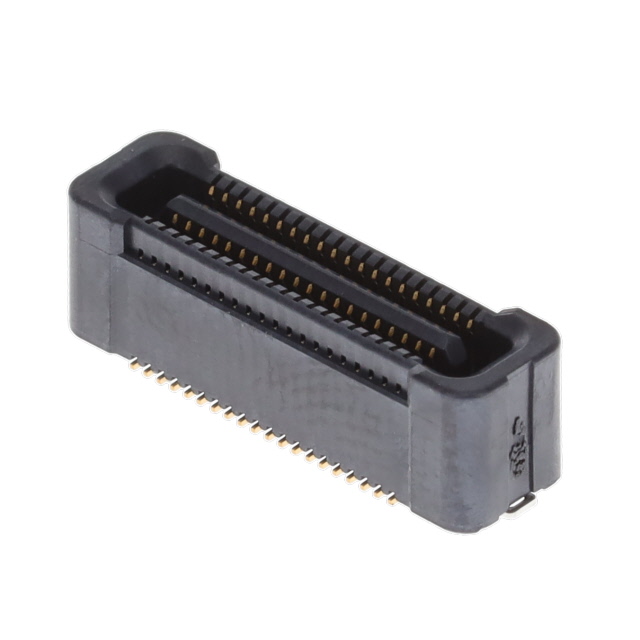

245655040600829+T

Active

Kyocera AVX

RECEPT 0.5MM - 6MM - VERT -FLOAT

Search across all available documentation for this part.

Active

Kyocera AVX

RECEPT 0.5MM - 6MM - VERT -FLOAT

Technical Specifications

Parameters and characteristics for this part

Specification	245655040600829+T

Connector Type	Floating, Receptacle
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	4.75 mm
Height Above Board [z]	0.187 in
Mated Stacking Heights	6 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Features	Contact Finish	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Positions	Mounting Type	Number of Rows	Connector Type	Height Above Board [z]	Height Above Board	Height Above Board
Kyocera AVX 245655030600829+T	Board Guide Solder Retention	Gold	6 mm	0.5 mm	0.02 in	30	Surface Mount	2	Floating Receptacle	0.187 in	4.75 mm
Kyocera AVX 245655030700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	30	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in
Kyocera AVX 245655080700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	80	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in
Kyocera AVX 245655100700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	100	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in
Kyocera AVX 245655050400829+T	Board Guide Solder Retention	Gold	4 mm	0.5 mm	0.02 in	50	Surface Mount	2	Floating Receptacle		2.75 mm	0.108 in
Kyocera AVX 245655040600829+T	Board Guide Solder Retention	Gold	6 mm	0.5 mm	0.02 in	40	Surface Mount	2	Floating Receptacle	0.187 in	4.75 mm
Kyocera AVX 245655040700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	40	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in
Kyocera AVX 245655060400829+T	Solder Retention		4 mm	0.5 mm	0.02 in	60	Surface Mount	2	Floating Receptacle		2.75 mm	0.108 in
Kyocera AVX 245655050600829+T	Board Guide Solder Retention	Gold	6 mm	0.5 mm	0.02 in	50	Surface Mount	2	Floating Receptacle	0.187 in	4.75 mm
Kyocera AVX 245655050700829+T	Board Guide Solder Retention	Gold	7 mm	0.5 mm	0.02 in	50	Surface Mount	2	Floating Receptacle		5.74 mm	0.226 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.47
	Digi-Reel®	1	$ 5.47
	Tape & Reel (TR)	1000	$ 3.24

General part information

40 Position Connector Receptacle, Floating Surface Mount Gold
