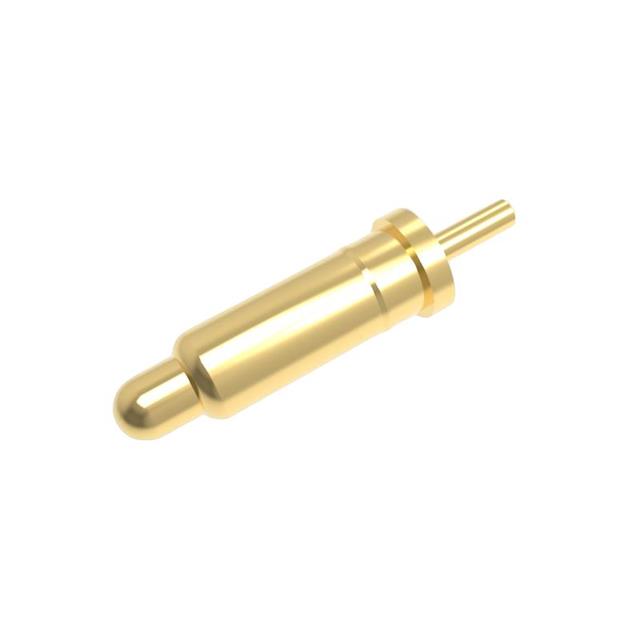

PH-MVP-4355 - PH-MVP-4355

PH-MVP-4355

Active
Adam Tech

CONN POGO PIN CONNECTOR HDR 1 POS SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMedical Industry BrochureDatasheet+1
PH-MVP-4355 - PH-MVP-4355

PH-MVP-4355

Active
Adam Tech

CONN POGO PIN CONNECTOR HDR 1 POS SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

DocumentsMedical Industry BrochureDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPH-MVP-4355
Contact FinishGold
Contact MaterialBrass
Contact TypeSleeve & Plunger (Pogo Pins)
Current Rating (Amps)3 A
Mating Cycles1000000
Maximum Working Height [Max]0.217 in
Maximum Working Height [Max]5.51 mm
Minimum Working Height [Min]4.1 mm
Minimum Working Height [Min]0.161 in
Mounting TypeThrough Hole
Operating Force - Initial70 gf
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pad Layout DimensionCircular
Pad Layout Dimension [diameter]0.071 in
Pad Layout Dimension [diameter]1.8 mm
Plunger Size [diameter]1 mm
Plunger Size [diameter]0.039 in
Recommended Working Height [z]4.5 mm
Recommended Working Height [z]0.177 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 0.02
DigikeyBag 1$ 1.95
10$ 1.66
25$ 1.56
50$ 1.48
100$ 1.41
250$ 1.38
300$ 1.31
500$ 1.26
1000$ 1.20
2500$ 1.12

Description

General part information

PH-MVP-43 Series

Contact Spring Through Hole
