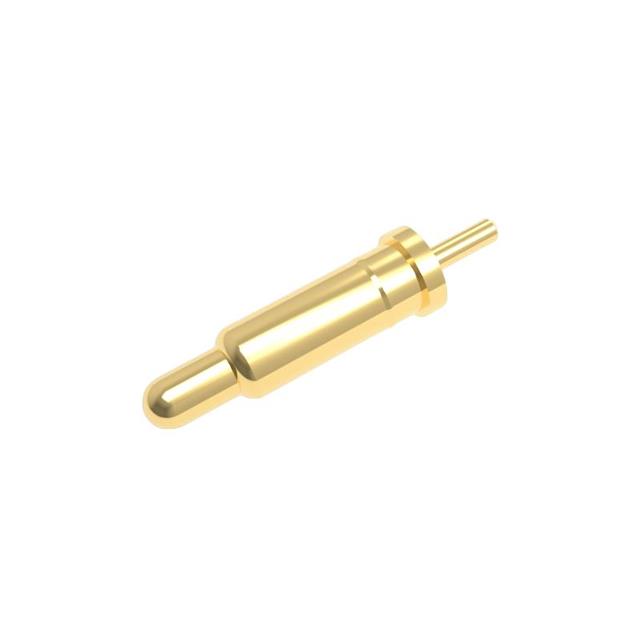

PH-MVP-4360
ActiveAdam Tech
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Search across all available documentation for this part.
PH-MVP-4360
ActiveAdam Tech
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PH-MVP-4360 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 3 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 6 mm |
| Maximum Working Height [Max] | 0.236 in |
| Minimum Working Height [Min] | 0.181 in |
| Minimum Working Height [Min] | 4.6 mm |
| Mounting Type | Through Hole |
| Operating Force - Initial | 70 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension | Circular |
| Pad Layout Dimension [diameter] | 0.071 in |
| Pad Layout Dimension [diameter] | 1.8 mm |
| Plunger Size [diameter] | 1 mm |
| Plunger Size [diameter] | 0.039 in |
| Recommended Working Height | 5 mm |
| Recommended Working Height [z] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 2.58 | |
| 10 | $ 1.97 | |||
| 25 | $ 1.78 | |||
| 50 | $ 1.64 | |||
| 100 | $ 1.52 | |||
| 250 | $ 1.38 | |||
| 500 | $ 1.28 | |||
| 1000 | $ 1.19 | |||
| 2500 | $ 1.09 | |||
Description
General part information
PH-MVP-43 Series
Contact Spring Through Hole
