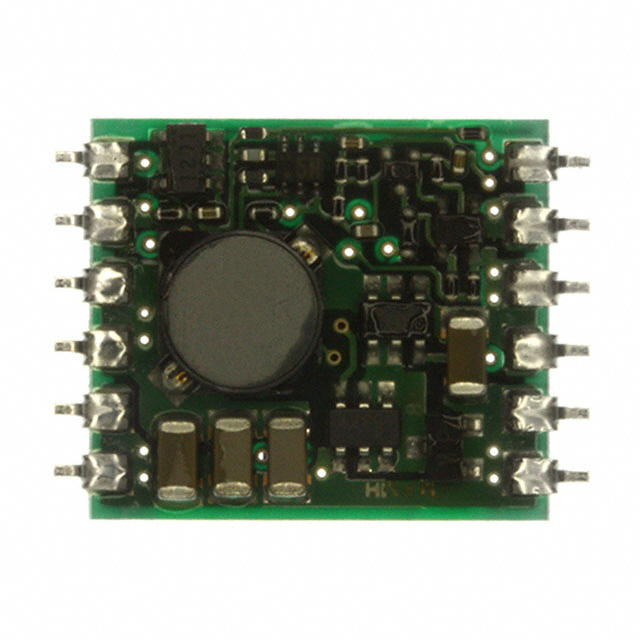

MPDTY102S

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.8-5V 10W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.8-5V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Efficiency	Voltage - Output 1	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Control Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Type	Applications	Power (Watts)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]
Murata Power Solutions Inc. MPDTY122S	12-SMD Module	93 %	1.2 V	4.5 V	0.61 in	33.8 mm	6 mm	15.4 mm	0.24 "	1.33 "	Remote On/Off SCP	Active Low Enable	5.5 V	6 A	1	Non-Isolated PoL Module	ITE (Commercial)	7 W	Surface Mount	85 °C	-40 °C
Murata Power Solutions Inc. MPDTY102S	12-SMD Module	93 %		2.97 V	0.74 in	16.4 mm	4.2 mm	18.7 mm	0.17 in	0.65 in	Remote On/Off SCP	Active Low Enable	5.5 V	2 A	1	Non-Isolated PoL Module	ITE (Commercial)	10 W	Surface Mount	85 °C	-40 °C	0.8 V	5 V
Murata Power Solutions Inc. MPDTY201S	8-SMD Module	87 %		3 V	0.33 in	11 mm	5.6 mm	8.5 mm	0.22 in	0.43 "	Remote On/Off SCP UVLO	Active High Enable	5.5 V	3 A	1	Non-Isolated PoL Module	ITE (Commercial)	7 W	Surface Mount	85 °C	-40 °C	0.8 V	2.5 V
Murata Power Solutions Inc. MPDTY303S	22-SMD Module	92 %		6.5 V	0.61 in	27.8 mm	4.2 mm	15.4 mm	0.17 in	1.09 "	OTP Remote On/Off SCP UVLO	Active Low Enable	14 V	8 A	1	Non-Isolated PoL Module	ITE (Commercial)	44 W	Surface Mount	85 °C	-40 °C	0.8 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5V 2A 2.97V - 5.5V Input
