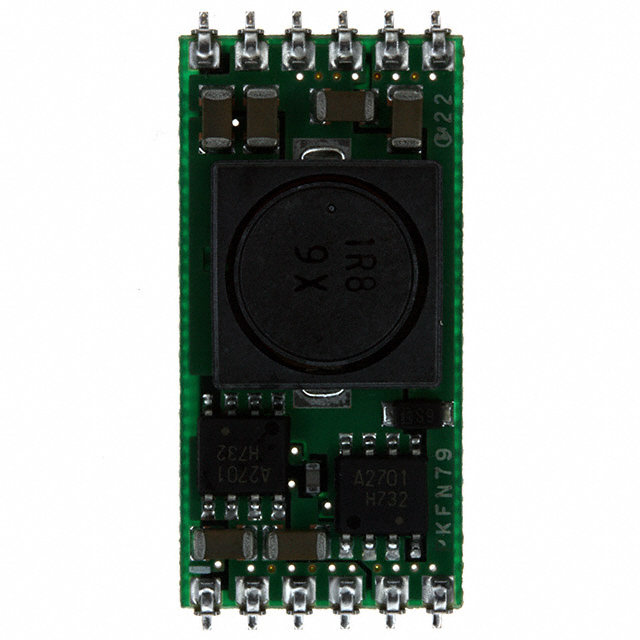

MPDTY122S

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 1.2V 7W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 1.2V 7W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Efficiency	Voltage - Output 1	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Control Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Type	Applications	Power (Watts)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]
Murata Power Solutions Inc. MPDTY122S	12-SMD Module	93 %	1.2 V	4.5 V	0.61 in	33.8 mm	6 mm	15.4 mm	0.24 "	1.33 "	Remote On/Off SCP	Active Low Enable	5.5 V	6 A	1	Non-Isolated PoL Module	ITE (Commercial)	7 W	Surface Mount	85 °C	-40 °C
Murata Power Solutions Inc. MPDTY102S	12-SMD Module	93 %		2.97 V	0.74 in	16.4 mm	4.2 mm	18.7 mm	0.17 in	0.65 in	Remote On/Off SCP	Active Low Enable	5.5 V	2 A	1	Non-Isolated PoL Module	ITE (Commercial)	10 W	Surface Mount	85 °C	-40 °C	0.8 V	5 V
Murata Power Solutions Inc. MPDTY201S	8-SMD Module	87 %		3 V	0.33 in	11 mm	5.6 mm	8.5 mm	0.22 in	0.43 "	Remote On/Off SCP UVLO	Active High Enable	5.5 V	3 A	1	Non-Isolated PoL Module	ITE (Commercial)	7 W	Surface Mount	85 °C	-40 °C	0.8 V	2.5 V
Murata Power Solutions Inc. MPDTY303S	22-SMD Module	92 %		6.5 V	0.61 in	27.8 mm	4.2 mm	15.4 mm	0.17 in	1.09 "	OTP Remote On/Off SCP UVLO	Active Low Enable	14 V	8 A	1	Non-Isolated PoL Module	ITE (Commercial)	44 W	Surface Mount	85 °C	-40 °C	0.8 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 1.2V 6A 4.5V - 5.5V Input
