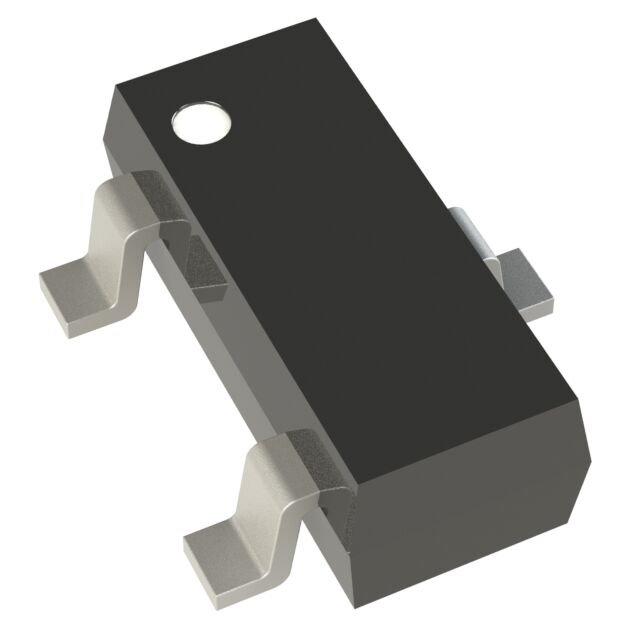

BAS40-05

Active

Diotec Semiconductor

DIODE ARR SCHOTT 40V 200MA SOT23

Search across all available documentation for this part.

Active

Diotec Semiconductor

DIODE ARR SCHOTT 40V 200MA SOT23

Technical Specifications

Parameters and characteristics for this part

Specification	BAS40-05

Current - Average Rectified (Io) (per Diode)	200 mA
Current - Reverse Leakage @ Vr	10 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Reverse Recovery Time (trr)	5 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-23-3 (TO-236)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Reverse Recovery Time (trr)	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Diode Configuration	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Speed
Diotec Semiconductor BAS40-06-C	5 ns	SOT-23-3 (TO-236)	200 mA	SC-59 SOT-23-3 TO-236-3	30 V	200 nA	1 Pair Common Anode	Surface Mount	1 V	Schottky	-55 °C	125 °C	Any Speed	200 mA
Diotec Semiconductor BAS40-05	5 ns	SOT-23-3 (TO-236)	200 mA	SC-59 SOT-23-3 TO-236-3	40 V	10 µA	1 Pair Common Cathode	Surface Mount	1 V	Schottky	-55 °C	150 °C	Any Speed	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 40 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
