BAS40-06-C

Active

Diotec Semiconductor

Search across all available documentation for this part.

Active

Diotec Semiconductor

Technical Specifications

Parameters and characteristics for this part

Specification	BAS40-06-C

Current - Average Rectified (Io) (per Diode)	200 mA
Current - Reverse Leakage @ Vr	200 nA
Diode Configuration	1 Pair Common Anode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C

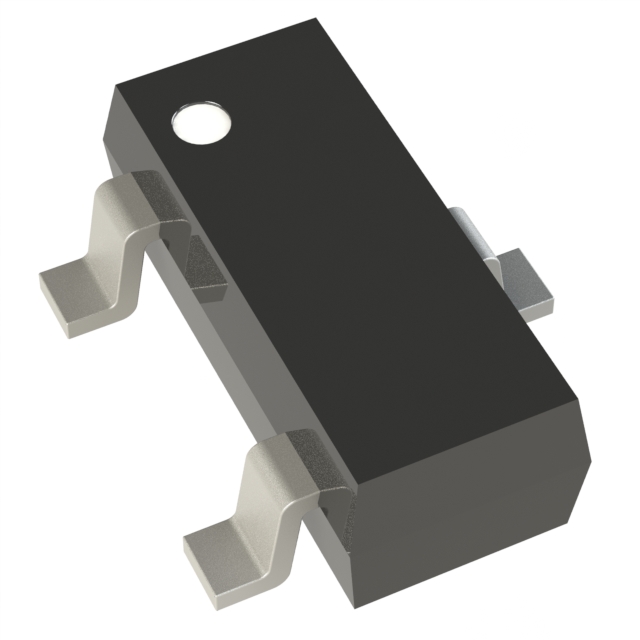

Package / Case	SOT-23-3, TO-236-3, SC-59
Reverse Recovery Time (trr)	5 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-23-3 (TO-236)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Reverse Recovery Time (trr)	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Diode Configuration	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Speed
Diotec Semiconductor BAS40-06-C	5 ns	SOT-23-3 (TO-236)	200 mA	SC-59 SOT-23-3 TO-236-3	30 V	200 nA	1 Pair Common Anode	Surface Mount	1 V	Schottky	-55 °C	125 °C	Any Speed	200 mA
Diotec Semiconductor BAS40-05	5 ns	SOT-23-3 (TO-236)	200 mA	SC-59 SOT-23-3 TO-236-3	40 V	10 µA	1 Pair Common Cathode	Surface Mount	1 V	Schottky	-55 °C	150 °C	Any Speed	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.02

General part information

Diode Array 1 Pair Common Anode 30 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
