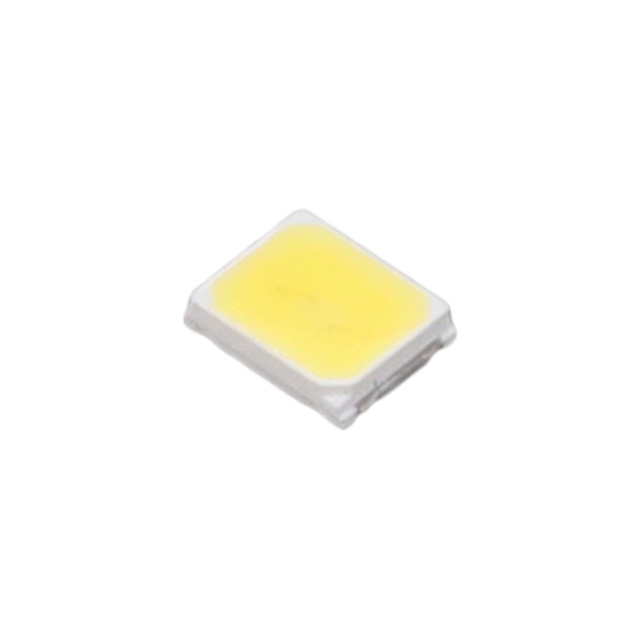

ASMW-FWG0-NJLB6

LTB

Broadcom Limited

LED ASMW COOL WHT 6500K 2835

Search across all available documentation for this part.

LTB

Broadcom Limited

LED ASMW COOL WHT 6500K 2835

Technical Specifications

Parameters and characteristics for this part

Specification	ASMW-FWG0-NJLB6

CCT (K)	6500 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	100 mA
Current - Test	60 mA
Flux @ 25°C, Current - Test	23 lm
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Lumens/Watt @ Current - Test	123 lm/W
Mounting Type	Surface Mount
Package / Case	1113 (2835 Metric)
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	2835
Thermal Resistance of Package	40 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.11 V

Part	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Current - Test	Mounting Type	Color	CCT (K)	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test	Thermal Resistance of Package	Supplier Device Package	Lumens/Watt @ Current - Test	Viewing Angle	Current - Max [Max]	Package / Case
Broadcom Limited ASMW-FWG0-ZJLB6
Broadcom Limited ASMW-FWG0-NJLF6	80	0.11 in	2.8 mm	0.138 "	3.5 mm	1113 (2835 Metric)	60 mA	Surface Mount	Neutral White	4000 K	3.11 V	0.035 "	0.9 mm	23 lm	40 °C/W	2835	123 lm/W	120 °	100 mA
Broadcom Limited ASMW-FWG0-NKMF6	80	0.11 in	2.8 mm	0.138 "	3.5 mm	1411	60 mA	Surface Mount	Neutral White	4000 K	2.92 V	0.035 "	0.9 mm	26 lm	40 °C/W	2835	146 lm/W	120 °	100 mA	3528 Metric
Broadcom Limited ASMW-FWG0-NJLB6	80	0.11 in	2.8 mm	0.138 "	3.5 mm	1113 (2835 Metric)	60 mA	Surface Mount	Cool White	6500 K	3.11 V	0.035 "	0.9 mm	23 lm	40 °C/W	2835	123 lm/W	120 °	100 mA
Broadcom Limited ASMW-FWG0-NJLH6	80	0.11 in	2.8 mm	0.138 "	3.5 mm	1411	60 mA	Surface Mount	Warm White		2.92 V	0.035 "	0.9 mm	25 lm	40 °C/W	2835	140 lm/W	120 °	100 mA	3528 Metric

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting ASMW-FWGO White, Cool 6500K 3.11V 60mA 120° 1113 (2835 Metric)
