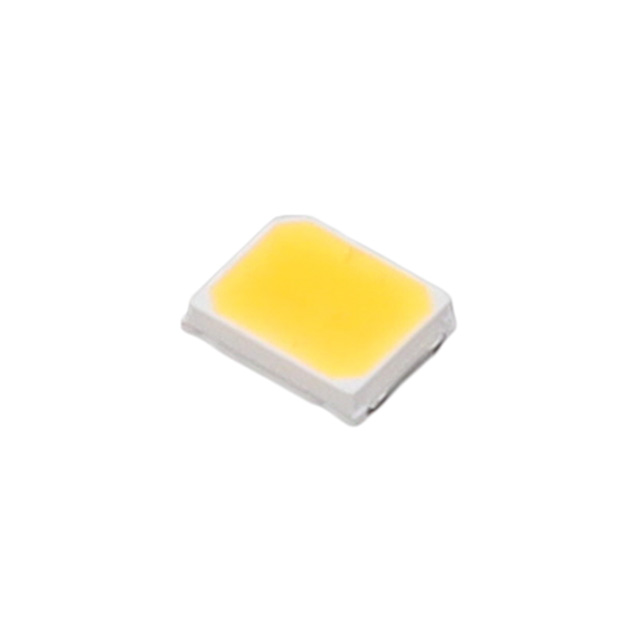

ASMW-FWG0-NJLH6
ActiveBroadcom Limited
LED WARM WHT 3000K 2835
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASMW-FWG0-NJLH6
ActiveBroadcom Limited
LED WARM WHT 3000K 2835
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMW-FWG0-NJLH6 |
|---|---|
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 100 mA |
| Current - Test | 60 mA |
| Flux @ 25°C, Current - Test | 25 lm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Lumens/Watt @ Current - Test | 140 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2835 |
| Thermal Resistance of Package | 40 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.92 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| 2000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| 2000 | $ 0.12 | |||
| Tape & Reel (TR) | 4000 | $ 0.11 | ||
| 8000 | $ 0.11 | |||
| 12000 | $ 0.10 | |||
| 20000 | $ 0.10 | |||
| 28000 | $ 0.10 | |||
| 40000 | $ 0.10 | |||
| 100000 | $ 0.09 | |||
Description
General part information
ASMW-FWG0 Series
LED Lighting - White, Warm 3000K 2.92V 60mA 120° 1411 (3528 Metric)
