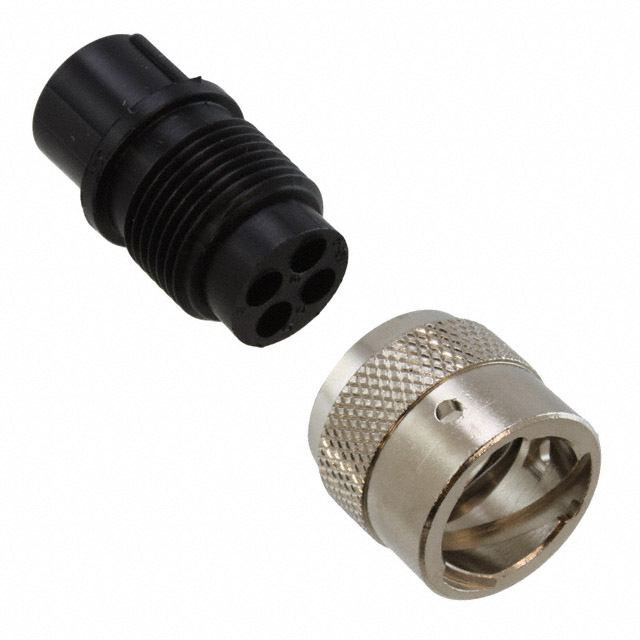

TR1004PFS1NB

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, PLUG, 4, SOCKET, CABLE MOUNT, 10-04 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, PLUG, 4, SOCKET, CABLE MOUNT, 10-04 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TR1004PFS1NB

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Detent Lock
Features	Coupling Nut
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	10-4
Shielding	Unshielded
Type	For Female Sockets

Part	Type	Contact Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Size - Insert	Material Flammability Rating	Contact Shape	Shielding	Number of Positions	Mounting Type	Note	Orientation	Features	Housing Color	Ingress Protection	Mounting Feature
ITT Cannon, LLC TR1004PMS1NB	For Male Pins	Crimp and Solder Cup	Detent Lock	105 ░C	-55 °C	Plug Housing	10-4	UL94 V-0	Circular	Unshielded	4	Free Hanging (In-Line)	Contacts Not Included	Keyed	Coupling Nut	Black
ITT Cannon, LLC TR1004RMH1NB	For Male Pins	Crimp Solder Solder Cup	Detent Lock	105 ░C	-55 °C	Receptacle Housing	10-4	UL94 V-0	Circular	Unshielded	4		Contacts Not Included	Keyed		Black	IP65 - Dust Tight Water Resistant	Flange
ITT Cannon, LLC TR1004PFS1NB	For Female Sockets	Crimp and Solder Cup	Detent Lock	105 ░C	-55 °C	Plug Housing	10-4	UL94 V-0	Circular	Unshielded	4	Free Hanging (In-Line)	Contacts Not Included	Keyed	Coupling Nut	Black
ITT Cannon, LLC TR1004RMS1NB	For Male Pins	Crimp Solder Solder Cup	Detent Lock	105 ░C	-55 °C	Receptacle Housing	10-4	UL94 V-0	Circular	Unshielded	4		Contacts Not Included	Keyed		Black		Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
