TR1004PMS1NB - 192922-1250

TR1004PMS1NB

Active
ITT Cannon, LLC

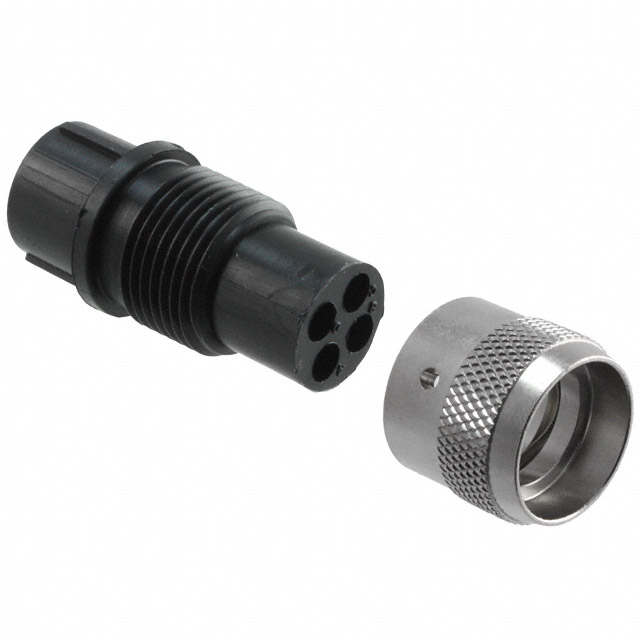

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, CABLE MOUNT PLUG, 4 CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

Search across all available documentation for this part.

Documents192922-1250Datasheet+3
TR1004PMS1NB - 192922-1250

TR1004PMS1NB

Active
ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, CABLE MOUNT PLUG, 4 CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

Documents192922-1250Datasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationTR1004PMS1NB
Connector TypePlug Housing
Contact ShapeCircular
Contact TypeCrimp and Solder Cup
Fastening TypeDetent Lock
FeaturesCoupling Nut
Housing ColorBlack
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions4
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
OrientationKeyed
Shell Size - Insert10-4
ShieldingUnshielded
TypeFor Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 11.33
10$ 10.04
25$ 9.65
50$ 9.27
100$ 8.75
250$ 7.98
500$ 7.47
1000$ 6.85
NewarkEach 1$ 12.28
5$ 11.36
10$ 10.44
25$ 9.79
50$ 9.32
100$ 8.87
250$ 8.32

Description

General part information

TR100 Series

The TR1004PMS1NB is a 4-way standard Plug is designed with nickel-plated copper contacts. The Trident Ringlock series circular connector uses a metal bayonet coupling system for quick and reliable connections.
