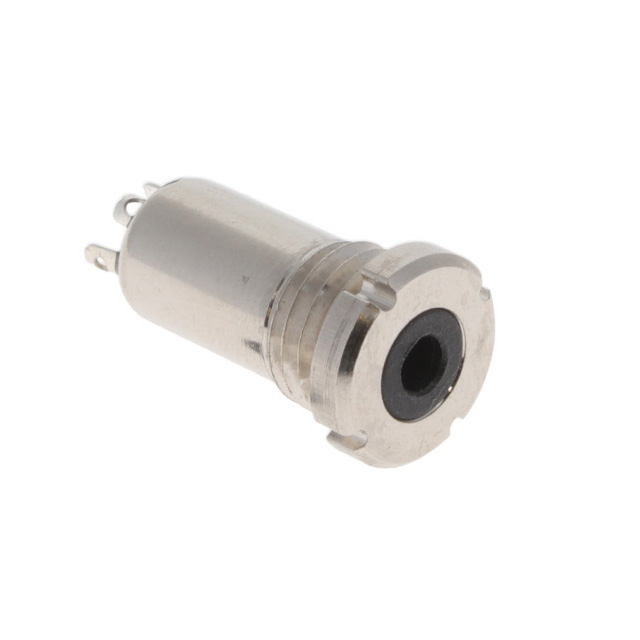

ASJ-203C-M-WP - ASJ-203C-M-WP

ASJ-203C-M-WP

Active
Adam Tech

-20℃~+70℃ 30V SILVER ALLOY STEEL 500MA AUDIO CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMedical Industry Brochure+1
ASJ-203C-M-WP - ASJ-203C-M-WP

ASJ-203C-M-WP

Active
Adam Tech

-20℃~+70℃ 30V SILVER ALLOY STEEL 500MA AUDIO CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheetMedical Industry Brochure+1

Technical Specifications

Parameters and characteristics for this part

SpecificationASJ-203C-M-WP
Actual Diameter [diameter]2.6 mm
Actual Diameter [diameter]0.102 in
Body ColorBlack
Connector TypePhone Jack
Contact MaterialSteel Alloy
Contact Material - Plating [custom]Silver
Current Rating (Amps)0.5 A
FeaturesMounting Hardware Not Included
GenderFemale
Housing MaterialPolyamide (PA10T), Nylon 10T
Industry Recognized Mating Diameter0.094 in
Industry Recognized Mating Diameter2.5 mm
Industry Recognized Mating Diameter3 /32"
Internal Switch(s)False
Number of Positions/Contacts [custom]4
Number of Positions/Contacts [custom]4
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
ShieldingUnshielded
Signal LinesStereo
TerminationSolder Eyelet(s)
Thread SizeM8
Voltage - Rated30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 4.68
10$ 3.58
25$ 3.22
50$ 2.99
100$ 2.77
250$ 2.51
500$ 2.34
1000$ 2.18
2500$ 2.00
LCSCPiece 1$ 2.27
200$ 0.88
500$ 0.85
1000$ 0.83

Description

General part information

ASJ-203 Series

2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder Eyelet(s)
