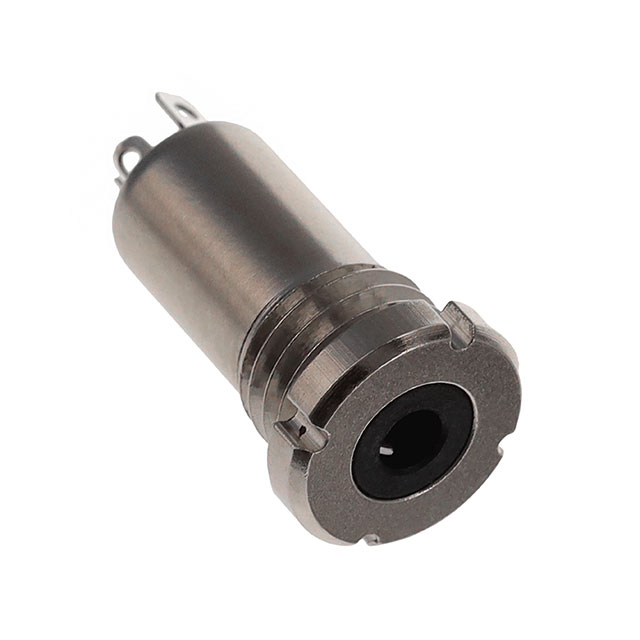

ASJ-203C-M-WP-HDW
ActiveAdam Tech
AUDIO JACK, WATERPROOF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASJ-203C-M-WP-HDW
ActiveAdam Tech
AUDIO JACK, WATERPROOF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASJ-203C-M-WP-HDW |
|---|---|
| Actual Diameter [diameter] | 2.6 mm |
| Actual Diameter [diameter] | 0.102 in |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Steel Alloy |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 0.5 A |
| Features | Mounting Hardware |
| Gender | Female |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Industry Recognized Mating Diameter | 0.094 in |
| Industry Recognized Mating Diameter | 2.5 mm |
| Industry Recognized Mating Diameter | 3 /32" |
| Internal Switch(s) | False |
| Number of Positions/Contacts [custom] | 4 |
| Number of Positions/Contacts [custom] | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.85 | |
| 10 | $ 3.71 | |||
| 25 | $ 3.34 | |||
| 50 | $ 3.10 | |||
| 100 | $ 2.87 | |||
| 250 | $ 2.60 | |||
| 500 | $ 2.43 | |||
| 1000 | $ 2.26 | |||
| 2500 | $ 2.07 | |||
Description
General part information
ASJ-203 Series
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder Eyelet(s)
