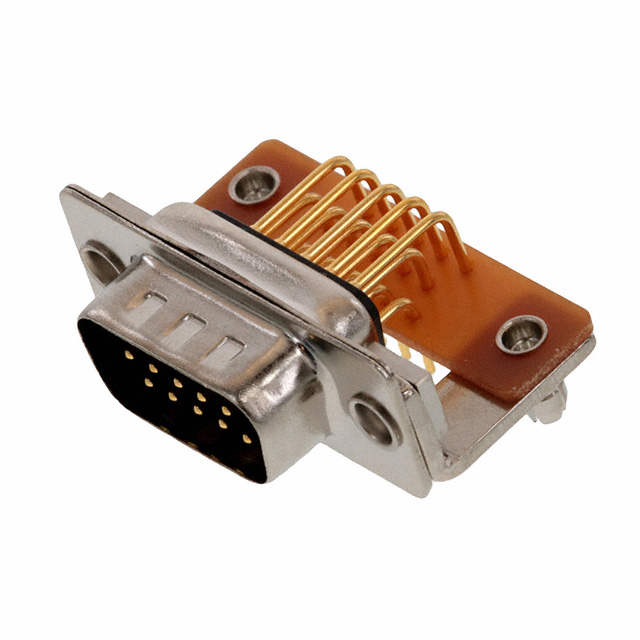

181-M15-113R141 - 181-M, M Series

181-M15-113R141

Active
MH Connectors

D SUB CONNECTOR, RIGHT ANGLE, NORCOMP - 181 SERIES, DE, PLUG, 15, STEEL, THROUGH HOLE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMiscellaneous EN+3
181-M15-113R141 - 181-M, M Series

181-M15-113R141

Active
MH Connectors

D SUB CONNECTOR, RIGHT ANGLE, NORCOMP - 181 SERIES, DE, PLUG, 15, STEEL, THROUGH HOLE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetMiscellaneous EN+3

Technical Specifications

Parameters and characteristics for this part

Specification181-M15-113R141
Backset Spacing8.89 mm
Backset Spacing0.35 in
ColorBlack
Connector StyleHigh Density, D-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesBoard Lock, Shielded, Grounding Indents
Flange FeatureHousing/Shell (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Panel Mount
Number of Positions15
Number of Rows3
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
Shell Size, Connector Layout [custom]High Density
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 10.27
10$ 9.24
25$ 8.71
40$ 8.48
90$ 8.26
270$ 7.37
450$ 6.92
990$ 6.12
NewarkEach 1$ 10.27
10$ 9.24
25$ 8.19
50$ 6.76
100$ 6.38
250$ 6.04
500$ 5.73

Description

General part information

181-M15 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
