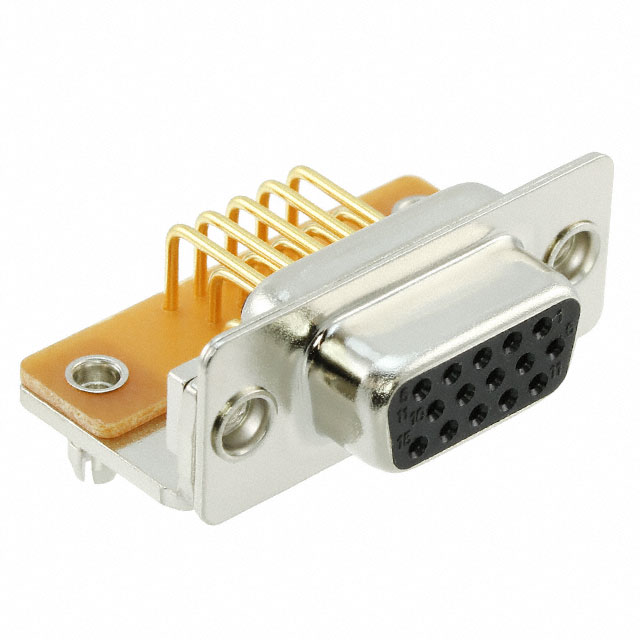

D SUB CONNECTOR, RIGHT ANGLE, HD15, RECEPTACLE, 181 M SERIES, 15 CONTACTS, DE, THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
181-M15-213R141
ActiveMH Connectors
D SUB CONNECTOR, RIGHT ANGLE, HD15, RECEPTACLE, 181 M SERIES, 15 CONTACTS, DE, THROUGH HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 181-M15-213R141 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Shielded, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
181-M15 Series
The 181-M15-213R141 is a 15-pin high-density right angle female D-sub Connector with screw machined contacts offer high reliability. It has gold flash-plated brass contact with PA6T insulator and nickel plated, steel shell.
