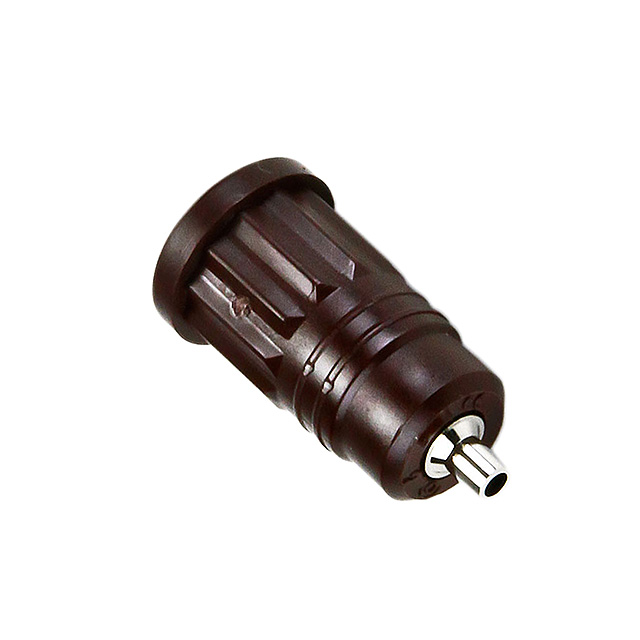

CT2245-0

Active

Cal Test Electronics

CONN BANANA JACK F 1 POS SOLDER ST PANEL MOUNT 1 PORT BLACK BAG

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK F 1 POS SOLDER ST PANEL MOUNT 1 PORT BLACK BAG

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Color	Insulation	Plug/Mating Plug Diameter	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Termination	Contact Finish	Type
Cal Test Electronics CT2245-2	Female	Red	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-6	Female	Blue	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-9	Female	White	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-5	Female	Green	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-0	Female	Black	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-7	Female	Purple	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	34	$ 1.75
Digikey	Bulk	1	$ 1.65

General part information

Banana Jack Connector Standard Banana Solder Black

Technical documentation and resources
