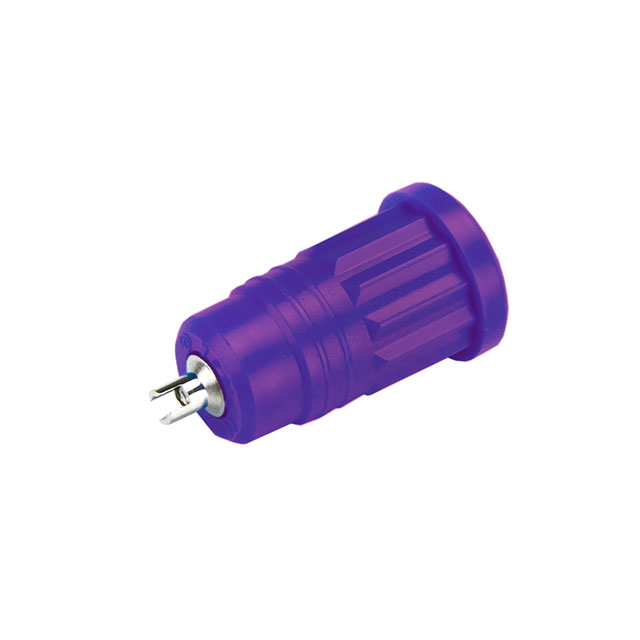

CT2245-7

Active

Cal Test Electronics

CONN BANANA JACK SOLDER PURPLE

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK SOLDER PURPLE

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Color	Insulation	Plug/Mating Plug Diameter	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Termination	Contact Finish	Type
Cal Test Electronics CT2245-2	Female	Red	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-6	Female	Blue	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-9	Female	White	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-5	Female	Green	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-0	Female	Black	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack
Cal Test Electronics CT2245-7	Female	Purple	Mating End Insulated	Standard Banana	Brass	-20 C	80 C	Nylon Polyamide (PA)	Solder	Nickel	Banana Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.65

General part information

Banana Jack Connector Standard Banana Solder Purple
