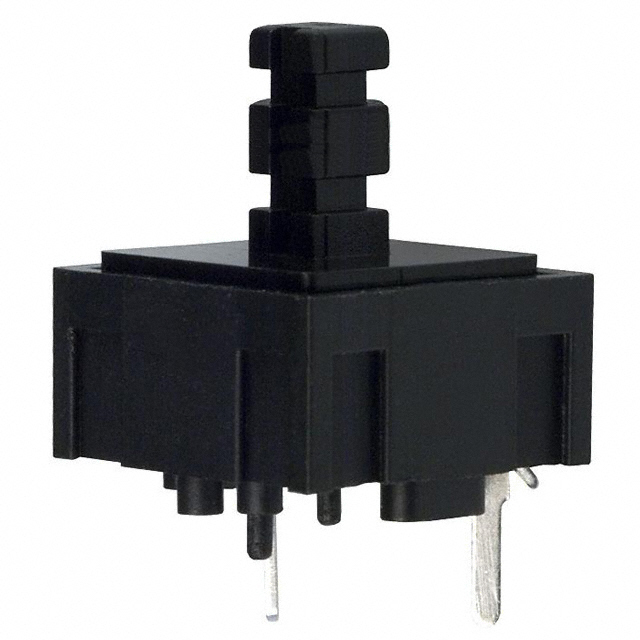

320.03E11BLK

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.025A/50VDC; THT; 1.18N; 16.5MM

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.025A/50VDC; THT; 1.18N; 16.5MM

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Orientation	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Contact Rating @ Voltage	Switch Function	Switch Travel [custom]	Mechanical Life	Actuator Height off PCB, Vertical [z]	Circuit	Illumination	Operating Force	Outline [x]	Outline [y]	Actuator Type	Features
E-Switch 320.03E11TAKGRY	Top Actuated	PC Pin	Through Hole	-20 C	70 °C	Polycarbonate (PC)	0.025 A 50 VDC	Off-Mom	0.6 mm	1000000 Cycles	20.2 mm	SPST-NO	Non-Illuminated	135 gf	12.4 mm	12.4 mm	Rectangular Button	Gray Cap
E-Switch 320.03U11MAKROLON
E-Switch 320.03E11.09RED	Top Actuated	PC Pin	Through Hole	-20 C	70 °C	Polycarbonate (PC)	0.025 A 50 VDC	Off-Mom	0.6 mm	1000000 Cycles	18.5 mm	SPST-NO	Non-Illuminated	135 gf	12.4 mm	12.4 mm	Round Button	Red Cap
E-Switch 320.03E11BLK	Top Actuated	PC Pin	Through Hole	-20 C	70 °C	Polycarbonate (PC)	0.025 A 50 VDC	Off-Mom	0.6 mm	1000000 Cycles		SPST-NO	Non-Illuminated	135 gf	12.4 mm	12.4 mm	Plunger for Cap	Tactile Feedback
E-Switch 320.03E11.08GRY	Top Actuated	PC Pin	Through Hole	-20 C	70 °C	Polycarbonate (PC)	0.025 A 50 VDC	Off-Mom	0.6 mm	1000000 Cycles	18.5 mm	SPST-NO	Non-Illuminated	135 gf	12.4 mm	12.4 mm	Round Button	Gray Cap
E-Switch 320.03E11.09GRN	Top Actuated	PC Pin	Through Hole	-20 C	70 °C	Polycarbonate (PC)	0.025 A 50 VDC	Off-Mom	0.6 mm	1000000 Cycles	18.5 mm	SPST-NO	Non-Illuminated	135 gf	12.4 mm	12.4 mm	Round Button	Green Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

No documents available
