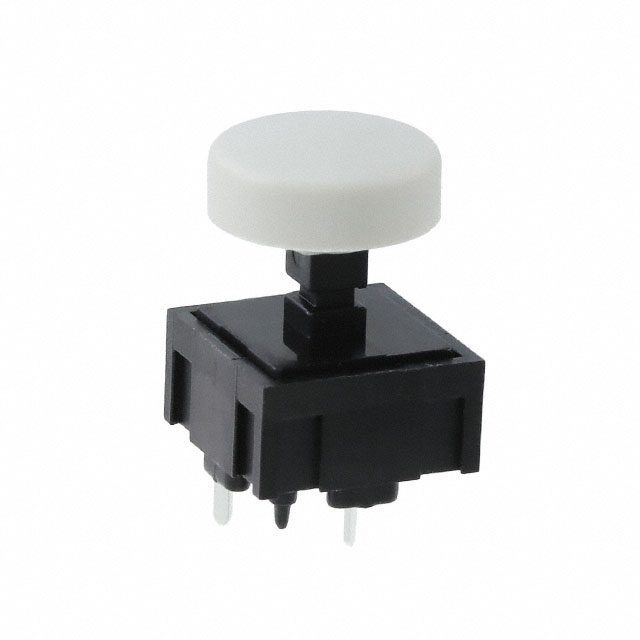

320.03E11.08GRY

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.025A/50VDC; THT; 18.5MM; 320

Deep-Dive with AI

Search across all available documentation for this part.

320.03E11.08GRY

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.025A/50VDC; THT; 18.5MM; 320

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	320.03E11.08GRY

Actuator Height off PCB, Vertical [z]	18.5 mm
Actuator Material	Polycarbonate (PC)
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.025 A, 50 VDC
Features	Gray Cap
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	135 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	12.4 mm
Outline [y]	12.4 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.6 mm
Termination Style	PC Pin

320.094 Series

Part	Circuit	Termination Style	Actuator Orientation	Switch Function	Actuator Type	Actuator Height off PCB, Vertical	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Outline [x]	Outline [y]	Illumination	Mounting Type	Mechanical Life	Switch Travel [custom]	Features	Actuator Material	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Shape	Switch Type	For Use With/Related Products	Size [z]	Size [diameter]	Color
E-Switch 320.02E11.08ORG	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button	14.4 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Orange Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320E11BLU	SPST-NO	PC Pin	Top Actuated	Off-Mom	Square Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Blue Cap	Polycarbonate (PC)	0.025 A 50 VDC	9.95 mm
E-Switch 320E11BLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Square Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Black Cap	Polycarbonate (PC)	0.025 A 50 VDC	9.95 mm
E-Switch 320.02E114JBLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Square Button	13.5 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Black Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.09E11BLU	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Blue Cap	Polycarbonate (PC)	0.025 A 50 VDC	15.7 mm
E-Switch 320.02E11BLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Plunger for Cap		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Tactile Feedback	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.02E11TACBLK	SPST-NO	PC Pin	Top Actuated	Off-Mom	Rectangular Button		-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Black Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.09GRY												Non-Illuminated	Snap Fit							Round Convex	Tactile	320 Series	5 mm	15.88 mm	Gray
E-Switch 320.02E11.08BLU	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button	14.4 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Blue Cap	Polycarbonate (PC)	0.025 A 50 VDC
E-Switch 320.02E11.08YEL	SPST-NO	PC Pin	Top Actuated	Off-Mom	Round Button	14.4 mm	-20 C	70 °C	135 gf	12.4 mm	12.4 mm	Non-Illuminated	Through Hole	1000000 Cycles	0.6 mm	Yellow Cap	Polycarbonate (PC)	0.025 A 50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.27
		10	$ 4.55
		25	$ 4.29
		50	$ 4.11
		162	$ 3.81
		324	$ 3.64
		648	$ 3.48
		1134	$ 3.36
TME	N/A	810	$ 5.85

Description

General part information

320.094 Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available
