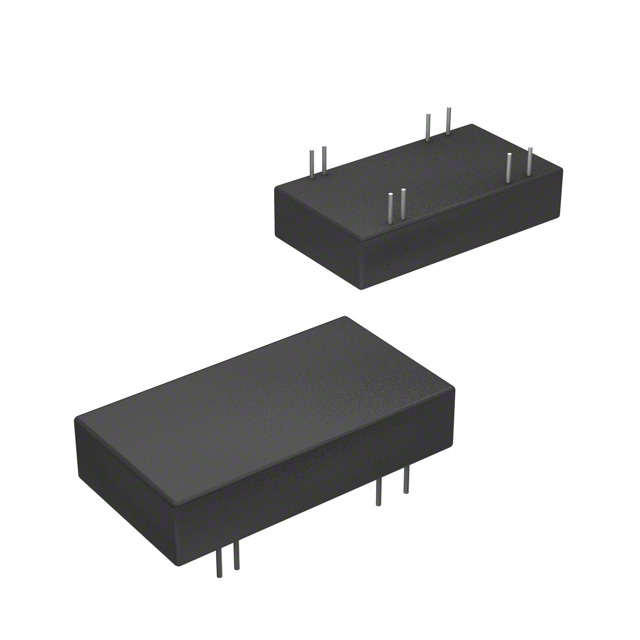

RW-4815D

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W DC/DC MIN 3KV REG 2:1 36-72IN +/-15OUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RW-4815D

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W DC/DC MIN 3KV REG 2:1 36-72IN +/-15OUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RW-4815D

Applications	ITE (Commercial), Medical
Current - Output (Max)	100 mA
Current - Output (Max)	100 mA
Efficiency	84 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 8 Leads
Power (Watts)	3 W
Size / Dimension [x]	1.26 in
Size / Dimension [x]	32 mm
Size / Dimension [y]	0.69 "
Size / Dimension [y]	17.5 mm
Size / Dimension [z]	0.28 "
Size / Dimension [z]	7 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	72 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

RW-483.3 Series

Isolated DC/DC Converters - Through Hole 3W DC/DC MIN 1kV REG 2:1 18-36Vin 5Vout

Part	Applications	Current - Output (Max) [Max]	Power (Watts)	Number of Outputs	Voltage - Isolation	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Type	Package / Case	Voltage - Input (Min) [Min]	Efficiency	Voltage - Output 1	Voltage - Input (Max) [Max]	Features	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
RECOM Power RW-2415S	ITE (Commercial)	200 mA	3 W	1	1000 V	Through Hole	-40 °C	80 C	14.7 mm	0.58 "	0.28 "	1.27 in	7 mm	32.3 mm	Isolated Module	24-DIP Module 8 Leads	18 V	85 %	15 V	36 V	SCP
RECOM Power RW-483.3S/SMD	ITE (Commercial)	650 mA	3 W	1	1000 V	Surface Mount	-40 °C	80 C	14.5 mm	0.57 in	0.4 "	1.26 in	10.2 mm	32 mm	Isolated Module	24-SMD Module 13 Leads	36 V	73 %	3.3 V	72 V	SCP
RECOM Power RW-0515S/SMD	ITE (Commercial)	200 mA	3 W	1	1000 V	Surface Mount	-40 °C	80 C	14.5 mm	0.57 in	0.4 "	1.26 in	10.2 mm	32 mm	Isolated Module	24-SMD Module 13 Leads	4.5 V	73 %	15 V	9 V	SCP
RECOM Power RW-053.3S	ITE (Commercial)	650 mA	3 W	1	1000 V	Through Hole	-40 °C	80 C	14.7 mm	0.58 "	0.28 "	1.27 in	7 mm	32.3 mm	Isolated Module	24-DIP Module 8 Leads	4.5 V	68 %	3.3 V	9 V	SCP
RECOM Power RW-0512S	ITE (Commercial)	250 mA	3 W	1	1000 V	Through Hole	-40 °C	80 C	14.7 mm	0.58 "	0.28 "	1.27 in	7 mm	32.3 mm	Isolated Module	24-DIP Module 8 Leads	4.5 V	72 %	12 V	9 V	SCP
RECOM Power RW-4815S/SMD	ITE (Commercial)	200 mA	3 W	1	1000 V	Surface Mount	-40 °C	80 C	14.5 mm	0.57 in	0.4 "	1.26 in	10.2 mm	32 mm	Isolated Module	24-SMD Module 13 Leads	36 V	85 %	15 V	72 V	SCP
RECOM Power RW-053.3S/SMD	ITE (Commercial)	650 mA	3 W	1	1000 V	Surface Mount	-40 °C	80 C	14.5 mm	0.57 in	0.4 "	1.26 in	10.2 mm	32 mm	Isolated Module	24-SMD Module 13 Leads	4.5 V	68 %	3.3 V	9 V	SCP
RECOM Power RW-4815D	ITE (Commercial) Medical		3 W	2	3000 V	Through Hole	-40 °C	85 °C	17.5 mm	0.69 "	0.28 "	1.26 in	7 mm	32 mm	Isolated Module	24-DIP Module 8 Leads	36 V	84 %	15 V	72 V	SCP	100 mA	100 mA	-15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 25.53
Sager	N/A	1	$ 26.51
		5	$ 25.65
		10	$ 24.46
		25	$ 23.74
		50	$ 23.39
		100	$ 22.72
		250	$ 21.22

Description

General part information

RW-483.3 Series

Isolated DC/DC Converters - Through Hole 3W DC/DC MIN 1kV REG 2:1 18-36Vin 5Vout

Documents

Technical documentation and resources

Datasheet

Document
