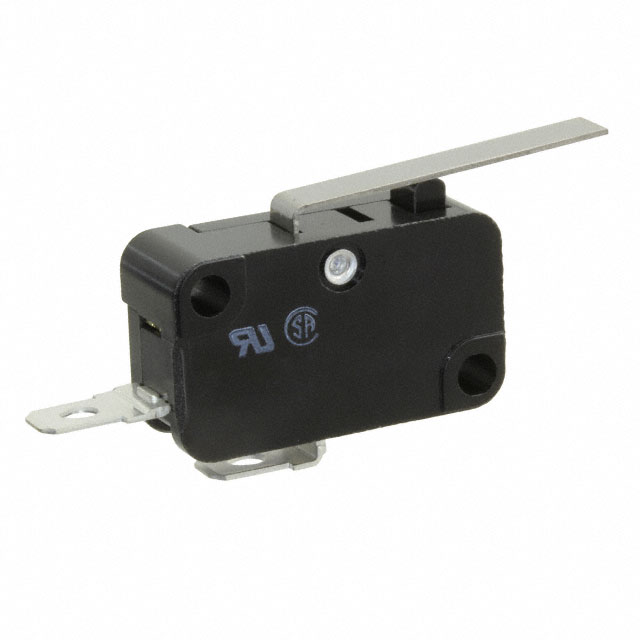

V-102-3A4
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NO 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
V-102-3A4
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NO 10A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V-102-3A4 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPST-NO |
| Differential Travel | 1.5 mm |
| Differential Travel | 0.06 " |
| Electrical Life | 300000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 50000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 60 gf |
| Operating Position | 0.6 in |
| Operating Position | 15.2 mm |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 1.6 mm |
| Overtravel | 0.062 in |
| Pretravel | 4 mm |
| Pretravel | 0.157 in |
| Release Force | 6.118 gf |
| Switch Function | Off-Mom |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.49 | |
| 10 | $ 2.89 | |||
| 25 | $ 2.68 | |||
| 50 | $ 2.53 | |||
| 100 | $ 2.39 | |||
| 300 | $ 2.19 | |||
| 500 | $ 2.10 | |||
| 1000 | $ 1.98 | |||
| 5000 | $ 1.90 | |||
Description
General part information
V-102 Series
Switch SPST-NO Chassis Mount
