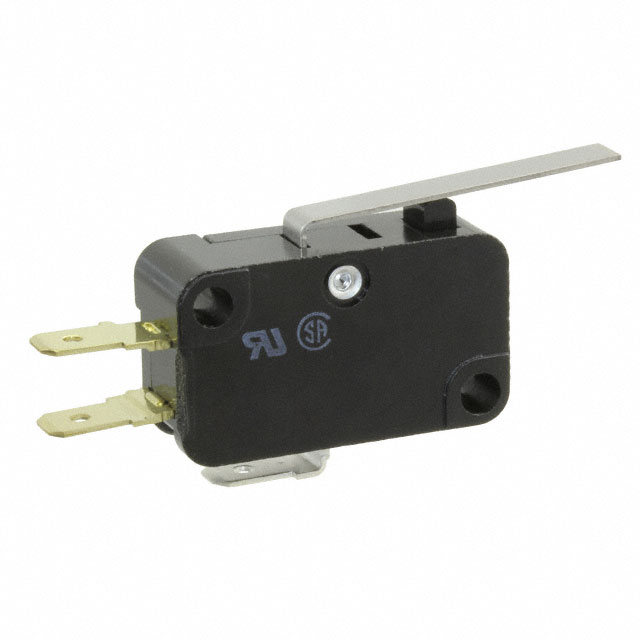

V-102-1C25

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 250V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Ingress Protection	Termination Style	Termination Style	Pretravel	Pretravel	Mechanical Life	Actuator Type	Release Force	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Overtravel	Overtravel	Operating Force	Differential Travel	Differential Travel	Electrical Life	Circuit	Voltage Rating - AC	Operating Position	Operating Position
Omron Electronics Inc-EMC Div V-102-1A4-T	125 VDC	IP40	Quick Connect Solder	0.187 in 4.7 mm	4 mm	0.157 in	50000000 Cycles	Lever Straight	6.118 gf	On-Mom	150 °C	-25 °C	Chassis Mount	1.6 mm	0.062 in	60 gf	1.5 mm	0.06 "	50000 Cycles	SPDT	250 V	0.6 in	15.2 mm
Omron Electronics Inc-EMC Div V-102-3A4	125 VDC	IP40	Quick Connect Solder	0.187 in 4.7 mm	4 mm	0.157 in	50000000 Cycles	Lever Straight	6.118 gf	Off-Mom	80 C	-25 °C	Chassis Mount	1.6 mm	0.062 in	60 gf	1.5 mm	0.06 "	300000 Cycles	SPST-NO	250 V	0.6 in	15.2 mm
Omron Electronics Inc-EMC Div V-102-1C4	125 VDC	IP40	Quick Connect - 0.250" (6.3mm)		4 mm	0.157 in	50000000 Cycles	Lever Straight	6.118 gf	On-Mom	80 C	-25 °C	Chassis Mount	1.6 mm	0.062 in	60 gf	1.5 mm	0.06 "	300000 Cycles	SPDT	250 V	0.6 in	15.2 mm
Omron Electronics Inc-EMC Div V-102-1C25	125 VDC	IP40	Quick Connect - 0.187" (4.7mm)		4 mm	0.157 in	50000000 Cycles	Lever Straight	14 gf	On-Mom	80 C	-25 °C	Chassis Mount	1.6 mm	0.062 in	125 gf	1.5 mm	0.06 "	300000 Cycles	SPDT	250 V	0.6 in	15.2 mm
