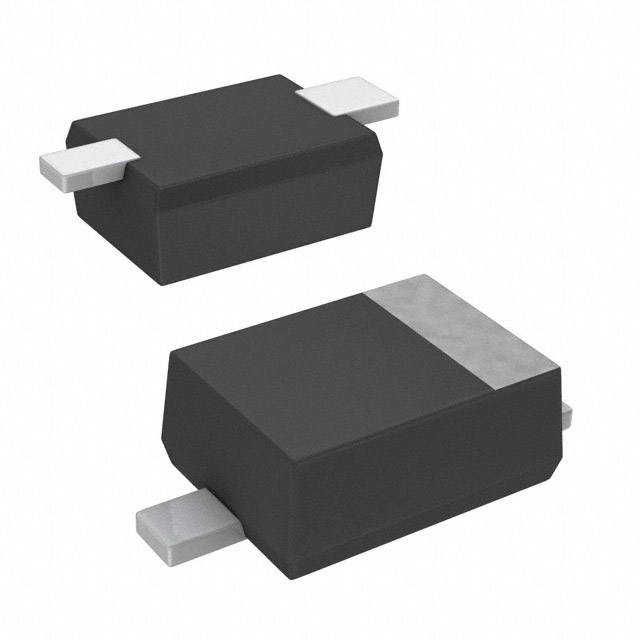

1N4448WS
ActiveSMC Diode Solutions
DIODE GEN PURP 75V 250MA SOD323
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N4448WS
ActiveSMC Diode Solutions
DIODE GEN PURP 75V 250MA SOD323
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N4448WS |
|---|---|
| Capacitance @ Vr, F | 4 pF |
| Current - Average Rectified (Io) | 250 mA |
| Current - Reverse Leakage @ Vr | 2.5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | SOD-323F, SC-90 |
| Reverse Recovery Time (trr) | 4 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOD-323 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.03 | |
| 6000 | $ 0.02 | |||
| 15000 | $ 0.02 | |||
| 30000 | $ 0.02 | |||
| 75000 | $ 0.02 | |||
| 150000 | $ 0.01 | |||
| Cut Tape (CT) | 1 | $ 0.15 | ||
| 10 | $ 0.14 | |||
| 25 | $ 0.13 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.06 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.03 | |||
| Digi-Reel® | 1 | $ 0.15 | ||
| 10 | $ 0.14 | |||
| 25 | $ 0.13 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.06 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.03 | |||
| Tape & Reel (TR) | 180000 | $ 0.01 | ||
Description
General part information
1N4448 Series
Diode 75 V 250mA Surface Mount SOD-323
