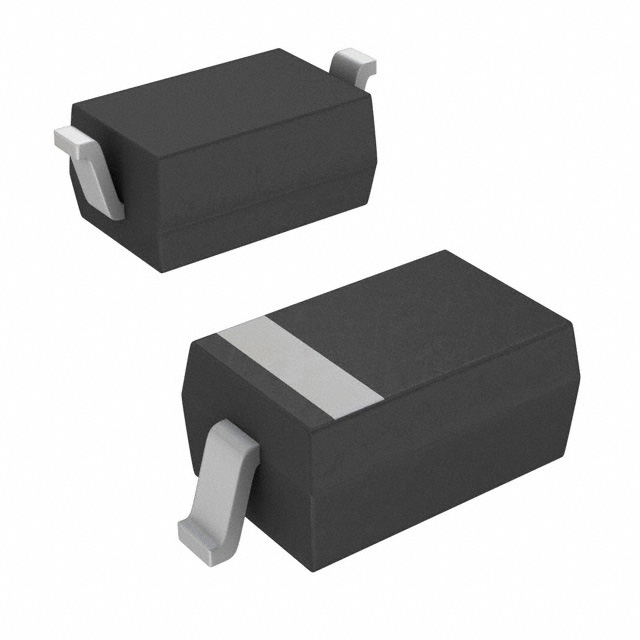

1N4448W

Active

SMC Diode Solutions

DIODE GEN PURP 75V 250MA SOD123

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE GEN PURP 75V 250MA SOD123

Technical Specifications

Parameters and characteristics for this part

Specification	1N4448W

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	250 mA
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SOD-123
Reverse Recovery Time (trr)	4 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Current - Reverse Leakage @ Vr	Speed	Voltage - Forward (Vf) (Max) @ If	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Package / Case	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type
SMC Diode Solutions 1N4448W	5 µA	200 mA 500 ns	1 V	Standard	75 V	250 mA	4 pF	4 ns	SOD-123	SOD-123	150 °C	-65 C	Surface Mount
SMC Diode Solutions 1N4448WS	2.5 µA	200 mA 500 ns	1 V	Standard	75 V	250 mA	4 pF	4 ns	SC-90 SOD-323F	SOD-323	150 °C	-65 C	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 75 V 250mA Surface Mount SOD-123
