R199005250

Active

Radiall USA, Inc.

MC-CARD / RIGHT ANGLE PLUG CRIMP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

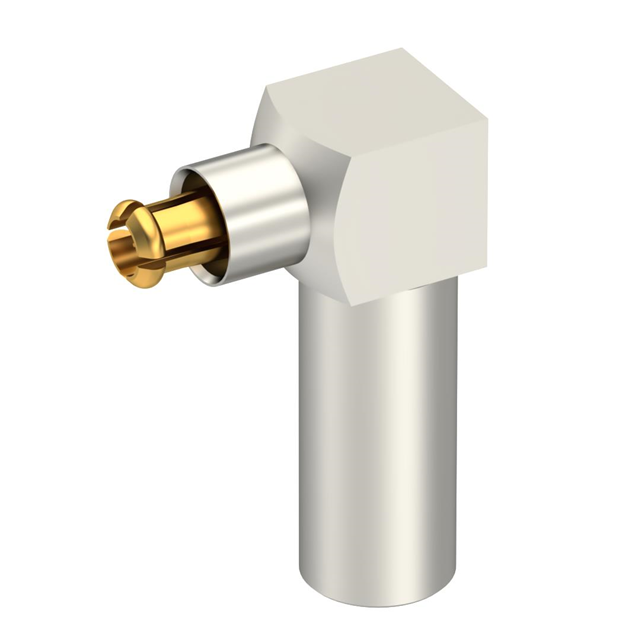

MC-CARD / RIGHT ANGLE PLUG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	R199005250

Body Finish	Nickel
Body Material	Brass
Cable Group	316, RG-188
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	8 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	170 V

Part	Impedance	Cable Group	Voltage Rating	Dielectric Material	Center Contact Plating	Frequency - Max [Max]	Body Finish	Center Contact Material	Contact Termination	Housing Color	Number of Ports	Fastening Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Mounting Type	Connector Type	Connector Style	Cable Group	Mating Cycles
Radiall USA, Inc. R199006423
Radiall USA, Inc. R199005250	50 Ohms	316 RG-188	170 V	Polytetrafluoroethylene (PTFE)	Gold	8 GHz	Nickel	Brass	Crimp	Silver	1	Snap-On	Brass	-65 ░C	165 °C	Crimp	Free Hanging (In-Line) Right Angle	Male Pin Plug
Radiall USA, Inc. R199001203W	50 Ohms	RG-178	500 V	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	Gold	Brass	Crimp	Gold	1	Snap-On	Bronze	-25 °C	125 °C	Crimp	Free Hanging (In-Line)	Male Pin Plug	MCC2	196	500
Radiall USA, Inc. R199006813	50 Ohms		100 V	Polyetheretherketone (PEEK)	Gold	6000 MHz	Gold	Brass	Solder	Gold	1	Snap-On	Brass	-40 °C	110 °C	Solder	Board Edge Cutout Surface Mount	Female Socket Receptacle	MOEBIUS		25000
