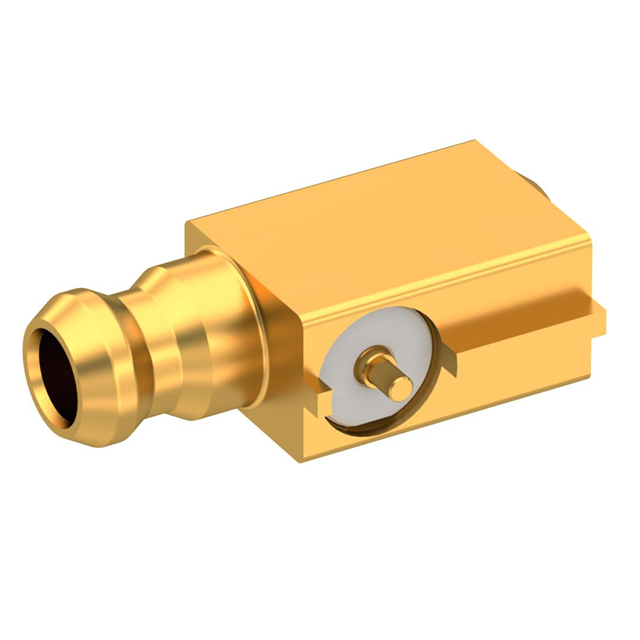

R199006813

Active

Radiall USA, Inc.

MOEBIUS / EDGE CARD SWITCH RECEP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MOEBIUS / EDGE CARD SWITCH RECEP

Technical Specifications

Parameters and characteristics for this part

Specification	R199006813

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MOEBIUS
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	25000
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	100 V

Part	Impedance	Cable Group	Voltage Rating	Dielectric Material	Center Contact Plating	Frequency - Max [Max]	Body Finish	Center Contact Material	Contact Termination	Housing Color	Number of Ports	Fastening Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Mounting Type	Connector Type	Connector Style	Cable Group	Mating Cycles
Radiall USA, Inc. R199006423
Radiall USA, Inc. R199005250	50 Ohms	316 RG-188	170 V	Polytetrafluoroethylene (PTFE)	Gold	8 GHz	Nickel	Brass	Crimp	Silver	1	Snap-On	Brass	-65 ░C	165 °C	Crimp	Free Hanging (In-Line) Right Angle	Male Pin Plug
Radiall USA, Inc. R199001203W	50 Ohms	RG-178	500 V	Polytetrafluoroethylene (PTFE)	Gold	6000 MHz	Gold	Brass	Crimp	Gold	1	Snap-On	Bronze	-25 °C	125 °C	Crimp	Free Hanging (In-Line)	Male Pin Plug	MCC2	196	500
Radiall USA, Inc. R199006813	50 Ohms		100 V	Polyetheretherketone (PEEK)	Gold	6000 MHz	Gold	Brass	Solder	Gold	1	Snap-On	Brass	-40 °C	110 °C	Solder	Board Edge Cutout Surface Mount	Female Socket Receptacle	MOEBIUS		25000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 11.47

General part information

MOEBIUS Connector Receptacle, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
