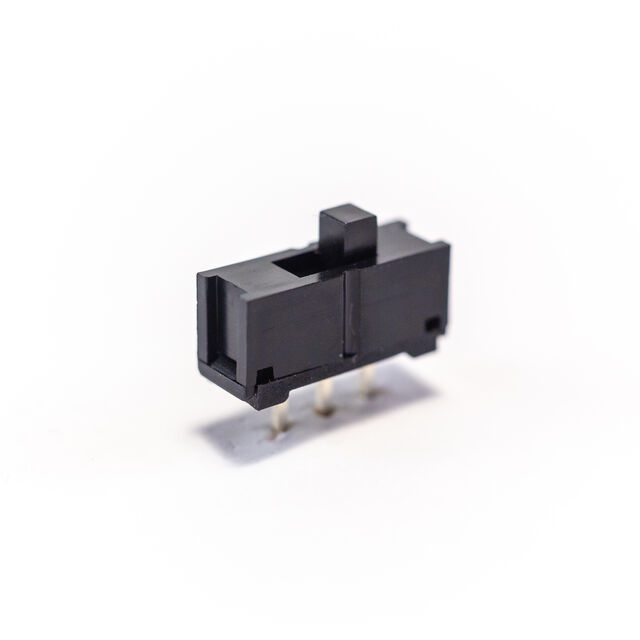

EG1218A

Active

E-Switch

SWITCH: SLIDE; POS: 2; SPDT; 0.2A/30VDC; ON-ON; THT; LEADS: FOR PCB

Search across all available documentation for this part.

Active

E-Switch

SWITCH: SLIDE; POS: 2; SPDT; 0.2A/30VDC; ON-ON; THT; LEADS: FOR PCB

Technical Specifications

Parameters and characteristics for this part

Part	Operating Force	Actuator Length [x]	Contact Finish	Current Rating (Amps)	Switch Travel	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Timing	Contact Material	Switch Function	Voltage Rating - DC	Termination Style	Actuator Type	Operating Force [Max]	Operating Force [Min]
E-Switch EG1218A	0.25 kgf	2 mm	Silver	200 mA	2.5 mm	SPDT	-20 C	70 °C	Through Hole	Non-Shorting	Copper Alloy	On-On	30 V	PC Pin	Standard
E-Switch EG2211A	0.25 kgf	2 mm	Silver	200 mA	2 mm	DPDT	-20 C	70 °C	Through Hole Right Angle	Not Specified	Copper Alloy	On-On	30 V	PC Pin	Standard
E-Switch EG2301B		9 mm	Silver	200 mA	2 mm	DP3T	-20 C	70 °C	Through Hole	Not Specified	Copper Alloy	On-On-On	30 V	PC Pin	Standard	300 gf	200 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 0.43

General part information

Slide Switch SPDT Through Hole

Technical documentation and resources

No documents available
