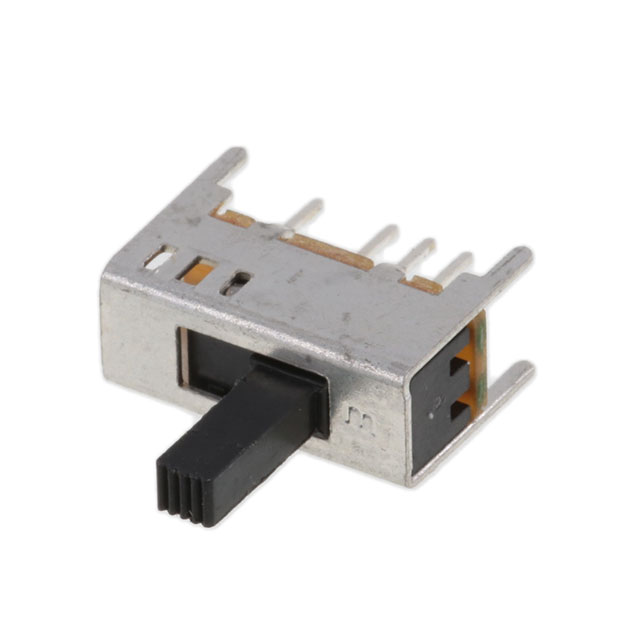

EG2301B
ActiveE-Switch
SWITCH: SLIDE; POS: 3; DP3T; 0.2A/30VDC; ON-ON-ON; THT; -20÷70°C
Deep-Dive with AI
Search across all available documentation for this part.
EG2301B
ActiveE-Switch
SWITCH: SLIDE; POS: 3; DP3T; 0.2A/30VDC; ON-ON-ON; THT; -20÷70°C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EG2301B |
|---|---|
| Actuator Length [x] | 9 mm |
| Actuator Type | Standard |
| Circuit | DP3T |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 200 mA |
| Mounting Type | Through Hole |
| Operating Force [Max] | 300 gf |
| Operating Force [Min] | 200 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-On-On |
| Switch Travel | 2 mm |
| Termination Style | PC Pin |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.94 | |
| 10 | $ 0.91 | |||
| 250 | $ 0.67 | |||
| 1000 | $ 0.58 | |||
| 5000 | $ 0.49 | |||
| 10000 | $ 0.45 | |||
Description
General part information
eg Series
Slide Switch DP3T Through Hole
